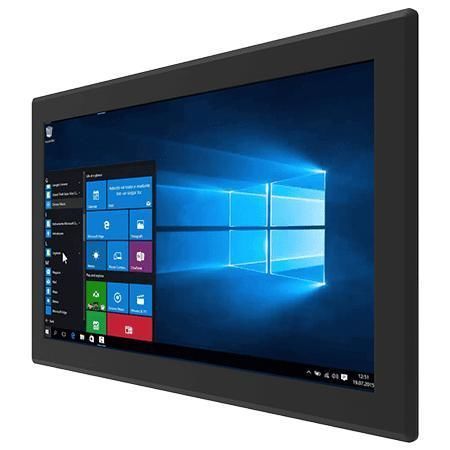

Panel PC with touch screen W24IT3S-IPA2

resistive touch screen24"Intel® Core™ i5-1135G7

Overview
The Winmate W24IT3S-IPA2 is a 24-inch Front IP65 Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). Designed for machine control, factory automation and operator HMI, it features a front-side IP65 rating, fanless cooling and flexible I/O and storage options for long lifecycle industrial deployments.

Key features

• 24" TFT display, 1920 x 1080 (Full HD)
• Intel® Core™ i5-1135G7 processor (2.4 GHz, up to 4.2 GHz)
• Fanless thermal design and ultra-low power consumption
• Front IP65 protection for water and dust resistance
• 1 x SO-DIMM DDR4 3200 MHz (max 32 GB)
• Integrated dual Intel Ethernet controllers (2 x 2.5 Gbps)
• M.2 Key M slot for M.2 2242 SATA III SSD (optional M.2 2280 NVMe)

Waterproof Front IP65 Design
Front IP65 construction protects the display and front controls from water and dust while maintaining a narrow bezel for panel integration. The sealed front and rear O-ring rubber gasket enable reliable operation in wet and dusty production, kiosk and outdoor installations.

Intuitive Operations with the Touchscreen
Selectable surface options include a resistive touch panel for operator interaction or protection glass when touch is not required, allowing adaptation to different industrial use cases and cleaning regimes.

HDMI and VGA Signal Interfaces
Provides HDMI and VGA interfaces for straightforward integration with embedded controllers and external displays. Dual Ethernet supports high-speed network connectivity for industrial communication.

Easy Installation
Rear O-ring on the front bezel ensures sealing between bezel and customer fixture to prevent ingress. Default panel-mount design simplifies installation; VESA mounting is optional for alternative setups.

Suitable for Outdoor Kiosk Applications
When embedded in a suitable enclosure, the IP65 front helps the panel PC withstand outdoor conditions including splash, humidity, dust and indirect sunlight, making it suitable for kiosks at parking, fuel stations, pools and similar sites.

Technical specifications

• Model: W24IT3S-IPA2
• Display: 24.0 inches, 1920 x 1080, brightness 250 nits, contrast 3000:1, viewing angles 89/89/89/89, active area 527.04 x 296.46 mm
• Touch/Glass: Resistive touch optional; protection glass optional
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; options 8/16/32 GB; 1 x SO-DIMM DDR4 3200 MHz (max 32 GB)
• Storage: 128 GB SSD default; optional 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller, 2 x 2.5 Giga LAN RJ45
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise 64-bit (optional), Windows 11 Pro 64-bit (optional), Linux Ubuntu 22.04 (optional, Wake on Touch not supported)
• Wireless: WLAN and Bluetooth optional (M.2 2230 E-Key for Wi-Fi)
• Expansion: 1 x M.2 2280 M-Key (NVMe optional); 1 x M.2 2242 SATA III (Key M); 1 x M.2 2230 E-Key (Wi‑Fi)
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 optional; VGA available
• Audio: 2 x speaker
• Indicators/Controls: LED power, LED storage, brightness adjustment knob, power and reset buttons
• Mechanical: Dimensions 606 x 376 x 77 mm; cut-out 560.4 x 327.6 mm; weight 8.7 kg; metal housing; panel mount default, VESA optional
• Environment: Operating humidity 10%–90% RH non-condensing; operating temperature 0°C–50°C; storage -10°C–60°C; front IP65
• Certifications: CE, FCC
• Power: 1 x 12 V DC (2.5φ DC jack); adapter 12 V 120 W; accessories: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips
