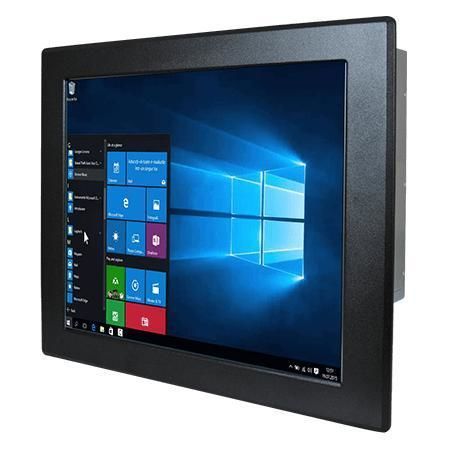

Resistive touch screen panel PC R19IP7T-IPA2WT

LCD19"Intel® Pentium® N4200

Overview
Winmate R19IP7T-IPA2WT is a 19-inch front IP65 panel PC powered by Intel® Pentium® N4200 (Apollo Lake), engineered for machine control, factory automation and operator HMI in wet, dusty or wide-temperature environments. It targets OEMs, system integrators and industrial buyers who require a sealed front panel, flexible storage and stable long-term operation.

Key features

• Intel® Pentium® N4200 1.10 GHz (burst up to 2.5 GHz)
• Flexible storage: M.2 2242 SSD (default) and optional 2 x SATA III for 2.5" SSD/HDD
• Rich I/O: 4 x USB3.2 Gen1 Type-A, 2 x Gigabit LAN, 2 x serial (RS232/422/485 configurable)
• Front IP65 rating, 12 V DC input (Din4 connector), fanless metal housing
• Display support: DP1.2 up to 4096 x 2160 @60Hz; optional HDMI 1.4 / VGA

Product highlights
Front IP65 sealing protects against water and dust for front-facing installations. Narrow bezel and compact dimensions make the unit suitable for factory automation panels, outdoor kiosks and embedded cabinets where front protection and reliable operation are required.

Touch and display options
Available with resistive touch or protection glass without touch. Native resolution 1280 x 1024, 350 nits brightness, 1000:1 contrast and viewing angles 85/85/80/80. Active area 376.32 x 301.06 mm.

I/O and expansion
Standard I/O: 4 x USB3.2 Gen1, 2 x Gigabit RJ45, 1 x RS232/422/485 (default RS232) + 1 x RS232, DP1.2 (default), audio I/O and speakers. Expansion: 1 x M.2 2242 B-key (SATA SSD), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1. Optional HDMI/VGA depending on configuration.

Mechanical & mounting
Metal housing, fanless design. Dimensions 474 x 384 x 78 mm; cut-out 431 x 341 mm; weight 6.9 kg. Supports panel mount and VESA mount. Rear O‑ring sealing on bezel enables reliable front sealing when installed.

Environment & reliability
Operating temperature -20°C to 60°C (storage -30°C to 70°C). Operating humidity 30%–90% RH (non‑condensing). Front IP65 protects against dust and splashes for front-facing use.

Certifications
CE and FCC certified. TPM 2.0 available for platform security.

Typical use cases
Machine control, operator HMI, factory automation, outdoor kiosks (parking, fuel stations, pool/SPA kiosks) and embedded cabinets requiring a front IP65-rated panel PC.

Technical specifications

• Model: R19IP7T-IPA2WT
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 85/85/80/80
• Active area: 376.32 x 301.06 mm
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: 2 x SO-DIMM DDR3L 1866 MHz (4 GB default; 8 GB optional)
• Storage: 1 x M.2 2242 SSD 128 GB default (256/512 GB optional); optional 2 x SATA III for 2.5" SSD/HDD
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu optional
• USB: 4 x USB3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x DP1.2 (default); HDMI 1.4 / VGA optional
• Audio: Mic in, Line out, 2 x Speaker
• Expansion: M.2 2242 B-key (SATA SSD), M.2 2230 E-key (Wi‑Fi), PCIe 2.0 x1
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power & Reset buttons
• Power input: 12 V DC (Din4 pin); adapter 12 V 84 W available
• Dimensions / Weight: 474 x 384 x 78 mm / 6.9 kg
• Mounting: Panel mount; VESA mount
• Environment: Operating -20°C to 60°C; Storage -30°C to 70°C; 30%–90% RH (non-condensing)
• Front IP rating: IP65
• Certifications: CE, FCC
