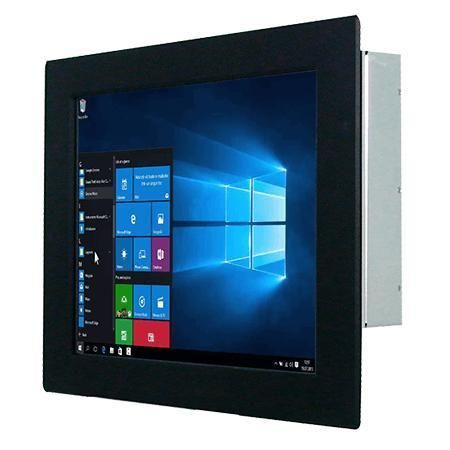

Resistive touch screen panel PC R15IP7T-IPA3WT

15"Intel® Pentium® N42001024 x 768

AI Summary
Winmate R15IP7T-IPA3WT is a 15-inch Front IP65 Wide Temperature Panel PC built for machine control, factory automation and operator HMI. It combines a front-side IP65 sealing, fanless cooling and flexible I/O/storage options to ensure reliable operation in wet, dusty or temperature-extreme industrial environments.

Key Features

• Intel® Pentium® N4200 (Apollo Lake) 1.10 GHz (burst up to 2.5 GHz)
• Flexible storage: M.2 2242 SSD + optional 2.5" SATA HDD/SSD (2 x)
• Multiple I/Os: serial ports, 4 x USB 3.2 Gen1 (Type‑A), 2 x Gigabit LAN
• Front IP65 protection, fanless metal housing, wide operating temperature (-20°C to 60°C)
• 12 V DC power input (Din4 pin); display outputs: DP1.2 (default), optional HDMI/VGA

Overview
The R15IP7T-IPA3WT is part of Winmate's Front IP65 series and is designed for integration in cabinets, panels and outdoor kiosks. The unit targets applications that require front-side waterproof/dustproof protection while maintaining a narrow bezel profile and industrial-grade I/O connectivity.

Waterproof Front IP65 Design
The sealed front bezel and rubber O-ring prevent ingress from the front side when panel-mounted, providing IP65 resistance to water jets and dust for use in harsh environments.

Intuitive Operations with the Touchscreen
Available with an optional resistive touchscreen or protection glass (no-touch) to match operator interface requirements and environmental constraints.

HDMI, VGA and DP Signal Interfaces
Display connectivity includes DP1.2 as default with optional HDMI 1.4 and VGA to support various embedded boards and display setups.

Easy Installation
Compact dimensions and front-seal design simplify panel cut-out installation. The product supports panel mount by default and optional VESA mounting for alternate installations.

Suitable for Outdoor Kiosk Applications
When correctly embedded and sealed, the front IP65 rating makes the unit suitable for outdoor kiosks and terminals exposed to water, humidity and dust, such as parking systems, fuel stations and poolside installations.

Certifications
CE, FCC

Technical specifications

• Display Size: 15.0 inches; Resolution: 1024 x 768; Brightness: 500 nits; Contrast Ratio: 2500:1; View Angles: 88/88/88/88; Active Area: 304.1 x 228.1 mm
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch (optional)
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (DDR3L), up to 16 GB
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB SSD; 2 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2242 B-key (SATA III)
• Ethernet: 2 x Intel® Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu optional
• WLAN/BT: Optional (M.2 2230 E-key for Wi‑Fi)
• Dimensions: 400 x 320 x 70 mm; Cut out: 359 x 273 mm; Weight: 4.2 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless
• Operating Humidity: 30%–90% RH (non-condensing)
• Operating Temperature: -20 °C to 60 °C; Storage Temperature: -30 °C to 70 °C
• IP Rating: Front IP65
• IO Ports: 4 x USB3.2 Gen1 (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; 2 x Gigabit LAN
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional)
• Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• Expansion: 1 x M.2 2242 B-key (SSD); 1 x M.2 2230 E-key (Wi‑Fi); 1 x PCIe 2.0 x1 slot
• Indicators: Power LED; Storage LED; Brightness adjustment knob
• Power Input: 1 x 12 V DC (Din4 pin); Adapter: 12 V 50 W
• Accessories: 100~240 V AC to DC adapter; power cord; VESA screws; mounting clips; driver CD & manual (depending on kit)
