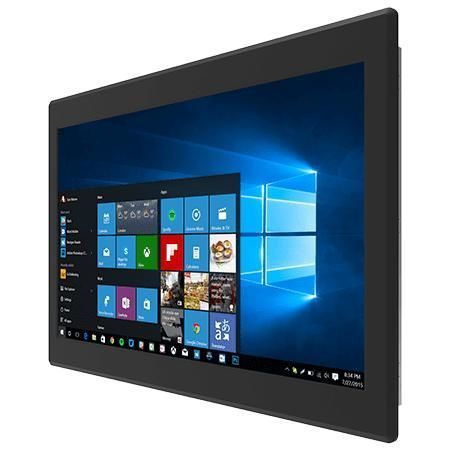

Resistive touch screen panel PC W22IT3S-IPA3

TFT LCD21.5"Intel® Core™ i5-1135G7

Overview
Winmate W22IT3S-IPA3 is a 21.5-inch front IP65 Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz). It targets machine control, factory automation and operator HMI applications requiring front-side water and dust protection, fanless operation and long lifecycle availability.

Key features

• 21.5-inch TFT display, 1920 x 1080
• Intel® Core™ i5-1135G7 processor (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling for silent and reliable operation
• Front IP65 protection for water and dust resistance
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual 2.5G LAN (2 x Intel® Ethernet Controller)
• 1 x M.2 Key M for M.2 2242 SATA III; optional M.2 2280 NVMe

Product details

• Front IP65 design with rear O-ring to seal against customer fixtures for wet and dusty environments
• Touch and glass options: resistive touch optional or protection glass without touch
• Video interfaces: VGA and optional HDMI 2.0 for integration with embedded systems
• I/O: 2 x USB 3.2 Gen2, serial ports (RS232/422/485), audio, LEDs and brightness knob
• Mounting: panel mount standard; VESA mount optional
• Metal housing and fanless architecture suitable for industrial installations

Accessories (included / optional)

• 100~240V AC to DC adapter
• Power cord
• VESA screws
• Mounting clips

Technical specifications

• Display: 21.5-inch, 1920 x 1080, 250 nits, 3000:1
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; options 8/16/32 GB (1 x SO-DIMM, DDR4 3200 MHz)
• Storage: 128 GB SSD default; optional 256/512 GB/1/2/4 TB; 1 x SATA III for 2.5" drives
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Ethernet: 2 x 2.5 Giga LAN RJ45
• USB: 2 x USB3.2 Gen2 Type-A; Serial: RS232/422/485 options
• Dimensions: 534 x 349 x 82 mm; cut-out 506 x 302 mm; weight 7.2 kg
• Operating: 0°C to 50°C; humidity 10%–90% RH non‑condensing; front IP65; certifications CE, FCC
