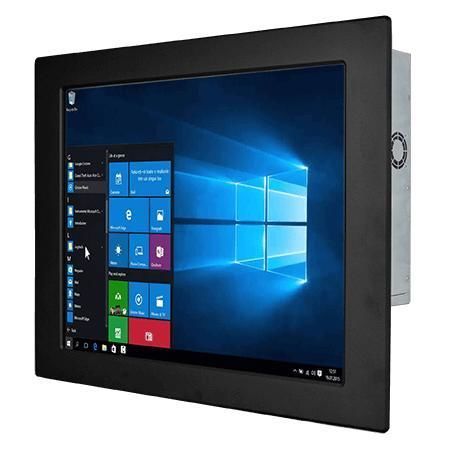

Resistive touch screen panel PC R19IT7T-IPA1

19"Intel® Core i5Intel® Core™ i series

Product Overview
The R19IT7T-IPA1 is an IP65 front panel PC with a 19-inch 1280×1024 display driven by Intel® Core™ i5 (Tiger Lake) processors. It is engineered for machine control, factory automation and operator HMI in wet, dusty or outdoor industrial environments, offering multiple display interfaces, flexible storage and extensive I/O connectivity.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (non-vPro) or i5-1145G7E (vPro option)
• 1280×1024 resolution, 400 nits, 1000:1 contrast
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/Os: serial ports, 4 x USB 3.2 Gen (Type-A), Gigabit + 2.5G LAN
• 12V DC single-voltage input; fanless metal enclosure
• Front-side IP65 protection for water and dust resistance

Waterproof Front IP65 Design
The front bezel is rated IP65 to resist water and dust ingress when correctly installed. A rear O-ring seal between the bezel and the customer fixture ensures a secure seal for kiosks and panel-mounted installations while maintaining a narrow bezel footprint.

Touchscreen and Surface Options
Surface options include resistive touchscreen (optional) or protection glass without touch. Choose the panel finish that matches operator workflows and environmental constraints.

Signal Interfaces and Integration
Standard video and signal interfaces (DP1.4 default, optional HDMI 2.0, VGA via adapter or LVDS/eDP) enable straightforward integration with embedded boards and industrial control systems. Multiple I/O ports support serial control and peripheral connectivity.

Easy Installation
Designed for embedded cabinet or rack mounting with open-frame default and optional panel or VESA mounts. The rear O-ring and rubber sealing simplify installation while preserving IP65 protection on the front face.

Suitable for Outdoor Kiosk Applications
When embedded properly, the front IP65 rating allows the unit to handle humidity, splashes and airborne particles—suitable for outdoor kiosks in parking, fuel stations, pool/SPAs and similar locations.

Certifications

• CE
• FCC

Technical Specifications

• Model: R19IT7T-IPA1
• Display: 19.0 inches, 1280×1024, 400 nits, 1000:1 contrast, view angles 85/85/80/80
• Touch/Glass: Resistive touch (optional); protection glass without touch (optional)
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); i5-1145G7E option with vPro
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per slot)
• Storage: 128 GB SSD (default); options: 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key (NVMe)
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• Wireless: WLAN/BT via M.2 2230 E-Key (optional)
• Dimensions: 474 x 384 x 78 mm; Cut-out: 431 x 341 mm; Weight: 6.9 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing, fanless design
• Operating humidity: 10%–90% RH (non-condensing)
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• Front IP rating: IP65
• IO Ports: 4 x USB 3.2 Gen (Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal)
• Indicators/Controls: Power LED; Storage LED; Brightness adjustment knob; Power and Reset buttons
• Power input: 1 x 12V DC (Din4 pin); Adapter: 12V 120W (accessories vary)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
