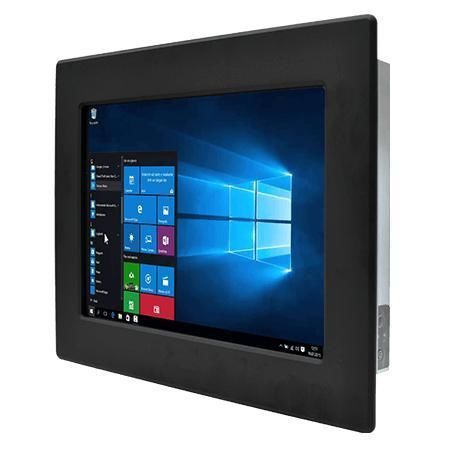

Resistive touch screen panel PC R12IE3S-IPM2

TFT LCD12.1"Intel® Celeron® N6211

Overview
Winmate R12IE3S-IPM2 is a 12.1-inch Intel® Celeron® N6211 front IP65 panel PC designed for machine control, factory automation and operator HMI. Its front IP65 rating and narrow-bezel panel-mount design enable use in wet, dusty or exposed installations with long lifecycle availability for industrial deployments.

Key Features

• 12.1” TFT LCD, 1024 x 768, 500 nits
• Intel® Celeron® Elkhart Lake N6211 (up to 3.0 GHz)
• 1 x SO‑DIMM (up to 16 GB DDR4); default 4 GB
• 2 x 2.5 Giga LAN (Intel® Ethernet Controller)
• Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1 and 4 x USB 2.0

Certifications

• CE
• FCC

Waterproof Front IP65 Design
The front IP65 rating provides protection against water and dust when installed correctly. A rubber O-ring seal between bezel and fixture prevents ingress, making the unit suitable for factory automation, outdoor kiosks, pools and similar environments where the front faces humidity or particles.

Intuitive Operations with the Touchscreen
Surface options include resistive touch (optional) or protection glass without touch. The available resistive touchscreen supports operator interaction in industrial conditions while protection glass is offered where touch is not required.

HDMI and VGA Signal Interfaces
Includes VGA and optional HDMI interfaces for integration with embedded boards and industrial systems, enabling single or dual display configurations.

Easy Installation
Panel-mount friendly with rear rubber O-ring sealing on the front bezel; can be installed in cabinets or racks. VESA mounting is available as an option for alternative installations.

Suitable for Outdoor Kiosk Applications
When embedded and sealed correctly, the front IP65 rating helps the system withstand outdoor conditions including water, humidity and airborne particles, making it suitable for parking, gas station and outdoor kiosk deployments.

Specifications

• Display Size: 12.1 inches; Resolution: 1024 x 768; Brightness: 500 nits; Contrast: 1000:1; View angles: 89/89/89/89; Active area: 245.76 x 184.32 mm
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without touch (Optional)
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (Default); 8 GB / 16 GB (Optional); 1 x SO‑DIMM, max. 16 GB DDR4
• Storage: 128 GB SSD (Default); options up to 2 TB; 1 x SATA III for 2.5" SSD/HDD; 1 x M.2 2242 B‑Key (SATA)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (Optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• Wireless: WLAN / Bluetooth support (Optional, M.2 2230 E‑Key)
• Dimensions: 324 x 274 x 57 mm; Cut out: 303 x 234.5 mm; Weight: 2.6 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal housing; Cooling: Fanless design
• Operating Humidity: 10% to 90% RH non-condensing; Operating Temp: 0°C to 50°C; Storage Temp: -10°C to 60°C
• IP Rating: Front IP65
• Ports: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0; Serial: 1 x RS232/422/485 (Default RS232) + 1 x RS232; Video: VGA; 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker; Indicators: Power and Storage LEDs; Brightness knob; Buttons: Power, Reset
• Power: 1 x 12V DC (2.5φ DC jack); Adapter: 12V 50W; Accessories: AC/DC adapter, power cord, VESA screws, mounting clips
