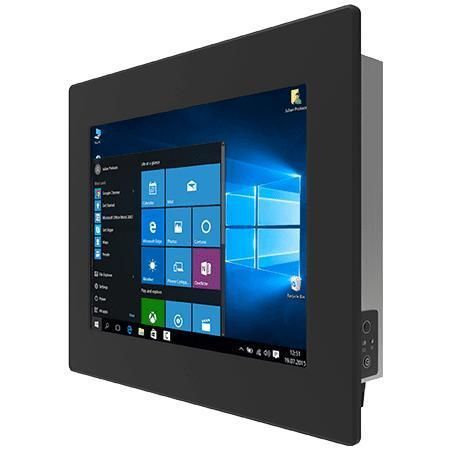

Resistive touch screen panel PC R12IAD3S-IPM2

LCD12.1"Intel® Core i5

Overview
Winmate R12IAD3S-IPM2 is a 12.1-inch front IP65 industrial panel PC powered by a 12th Gen Intel® Core™ i5-1235U, designed for machine control, factory automation and operator HMI. It features a sealed front bezel, fanless metal housing and multiple I/O for reliable deployment in wet or dusty industrial environments.

Key features

• 12.1-inch 1024 x 768 display
• 12th Gen Intel® Core™ i5-1235U processor
• 1 x SODIMM DDR5 4800MHz, up to 32GB
• Integrated dual 2.5 Gigabit Ethernet
• Multiple I/Os: 2 x USB 3.2 Gen2, serial ports, HDMI/VGA options
• Front IP65 dust and water protection
• 12 V DC power input, fanless design

Waterproof Front IP65 Design
The front bezel is sealed with a rubber O-ring for panel mounting into customer enclosures; when installed correctly the design prevents ingress of water and dust. Suitable for wet and dusty production floors and for integration into outdoor kiosks when used with appropriate enclosures.

Touch and Display Options
Available with resistive touch or protection glass without touch. Display characteristics include 1024 x 768 resolution, 500 nits brightness, 1000:1 contrast ratio and wide viewing angles for industrial HMI applications.

Integration and I/O
Provides HDMI and VGA interfaces (HDMI 2.0 optional), 2 x USB 3.2 Gen2 Type-A, serial ports (default RS232, optional RS232/422/485), dual 2.5 Giga LAN RJ45, audio (2 x speaker), M.2 slots for NVMe and Wi-Fi modules, LED indicators and a brightness adjustment knob for onsite tuning.

Mechanical & Thermal
Metal housing with fanless cooling, default panel mount (VESA optional). Compact dimensions and supplied mounting clips/screws simplify OEM or cabinet integration.

Certifications

• CE
• FCC

Accessories

• 100~240V AC to DC adapter
• Power cord
• VESA screws (optional)
• Mounting clips

Technical specifications

• Model: R12IAD3S-IPM2
• Processor: Intel® Core™ i5-1235U (base 3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default; options 16GB, 32GB; 1 x SODIMM DDR5 4800MHz, max 32GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional); 1 x M.2 2280 M-Key for NVMe
• Display: 12.1 inches, 1024 x 768, 500 nits, 1000:1 contrast, view angles 89/89/89/89
• Touch/Glass: Resistive touch optional or protection glass without touch
• Ethernet: 2 x Intel® 2.5 Gigabit LAN (RJ45)
• USB: 2 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 optional; VGA supported
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi-Fi)
• Indicators/Controls: LED power/storage, power button, reset button, brightness knob
• Power input: 1 x 12V DC, 2.5φ DC jack; adapter 12V 120W
• Mechanical: Metal housing, panel mount default, VESA optional; dimensions 324 x 274 x 67 mm; cut out 302 x 234.3 mm; weight 2.6 kg
• Cooling: Fanless design
• Environment: Operating 0°C to 50°C, storage -10°C to 60°C, humidity 10%–90% RH non-condensing
• IP rating: Front IP65
• Security: TPM 2.0
• Operating systems (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported on Ubuntu)
• Accessories included: AC-DC adapter, power cord, VESA screws, mounting clips
