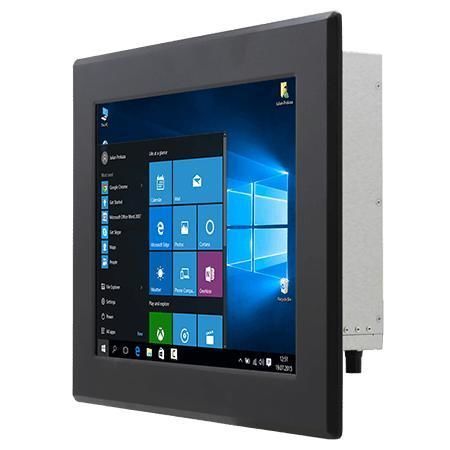

Resistive touch screen panel PC R15IP7T-IPC3

15"Intel® Pentium® N42001024 x 768

Overview
Winmate R15IP7T-IPC3 is a 15-inch Front IP65 industrial panel PC powered by Intel® Pentium® N4200 (Apollo Lake). It is designed for machine control, factory automation and operator HMI in rugged, wet or dusty environments. The front IP65 rating provides water and dust resistance at the front bezel while maintaining a slim bezel for embedded or kiosk installations.

Design & Use Cases
The Front IP65 Series Panel PC is built for wet and dusty applications such as factory automation, outdoor kiosks, pool and SPA kiosks, parking kiosks, gas stations and other industrial locations. Surface options include resistive touchscreen or protection glass without touch. A rear O-ring on the front bezel provides a sealed installation interface to prevent ingress of water and dust.

Key Features

• Intel® Pentium® N4200 Apollo Lake processor 1.10 GHz (up to 2.5 GHz)
• Flexible storage: 1 x 2.5" HDD bay, SSD socket and M.2 options (2242 B-key)
• Multiple I/Os: 2 x serial ports, 4 x USB 3.2 Gen1x1 (Type-A)
• 12 V DC power input (Din4 pin connector)
• DisplayPort support up to 4096 x 2160 @ 60 Hz (DP1.2); optional HDMI 1.4 up to 3840 x 2160 @ 30 Hz; optional VGA
• Fanless metal housing for reliable operation
• TPM 2.0 security and optional WLAN/BT via M.2 2230 E-key

Certifications
CE, FCC

Product Highlights
Front IP65 waterproof bezel for integration into enclosures and kiosks. Available with resistive touch or protection glass (no touch). Video interfaces include default DP and optional HDMI/VGA for flexible integration. Panel mount cut-out with optional VESA mounting and sealed bezel for outdoor or harsh environments.

Technical specifications

• Model: R15IP7T-IPC3
• Display: 15.0 inches, 1024 x 768, 300 nits, 2000:1 contrast, view angles 88/88/88/88, active area 304.1 x 228.1 mm
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM DDR3L, up to 16 GB (2 x SO-DIMM)
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB; 2 x SATA III for 2.5" SSD/HDD (optional); M.2 2242 B-key (SATA)
• Ethernet: 2 x Intel® Gigabit Ethernet controllers (2 x RJ45)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (configurable)
• USB: 4 x USB3.2 Gen1x1 (Type-A)
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional)
• Audio: Mic in, Line out, 2 x speaker
• Expansion: M.2 2242 B-key (SSD), M.2 2230 E-key (Wi‑Fi), PCIe 2.0 x1 (optional)
• Power: 1 x 12 V DC (Din4 pin); adapter 12 V 50 W (optional)
• Dimensions: 400 x 320 x 70 mm; Cut-out: 359 x 273 mm; Weight: 4.2 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Metal housing; Cooling: Fanless
• Operating humidity: 10% to 90% RH non-condensing; Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• IP rating: Front IP65; Certifications: CE, FCC
• Indicators & Controls: LED power/storage indicators, brightness adjustment knob, power and reset buttons
