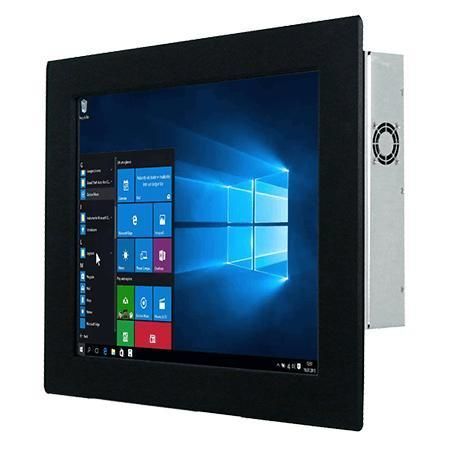

Resistive touch screen panel PC R15IAD7T-IPC3

15"Intel® Core i3Intel® Core i5

Overview
Winmate R15IAD7T-IPC3 is a 15-inch Front IP65 Panel PC designed for machine control, factory automation and operator HMI. It supports 12th/13th/14th Gen Intel® Core™ processors (Alder Lake / Raptor Lake / 14th-gen T options), DDR5 memory, dual 2.5GbE, multiple high-speed I/Os and optional multi-display outputs. The front IP65 rating protects the bezel in wet or dusty environments and enables integration in cabinets or outdoor kiosks when installed correctly.

Key Features

• 15” display, 1024 x 768 resolution, 300 nits, 2000:1 contrast
• Intel® Core™ processors i3/i5/i7/i9 (Alder Lake S and T-series options)
• 2 x SODIMM DDR5-4800 up to 64GB (32GB per slot)
• 2 x Intel® 2.5 Gigabit Ethernet
• Multi-display: DP1.4a (default), HDMI 2.0b (optional)
• Rich I/O: 4 x USB 3.2 Gen2, serial ports, audio, expansion slots
• Front IP65 protection; 12V DC power input

Product Highlights & Use Cases
Front IP65 design: protects the front bezel from water and dust while keeping a compact profile for factory automation, outdoor kiosks and other industrial or semi-outdoor installations.

Touch and surface options: supports resistive touch (optional) or protection glass without touch to match operator and environmental requirements.

Video & signal compatibility: DP/HDMI outputs and VGA-capable interfaces enable easy integration with embedded boards and industrial systems; DP1.4a and optional HDMI 2.0b support high-resolution outputs.

Installation: rubber O-ring seal on the rear of the front bezel ensures panel sealing for secure panel or VESA mounting in cabinets or enclosures.

Technical specifications

• Model: R15IAD7T-IPC3
• Display: 15.0 inches, 1024 x 768, 300 nits, 2000:1, active area 304.1 x 228.1 mm
• Touch/Glass: Resistive touch (optional); protection glass (optional)
• Processor: default Intel® Core™ i3-12100TE; optional i5-12500TE, i7-12700TE, i9-12900TE; newer T-series options available
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5-4800, up to 64GB
• Storage: 128GB SSD default; options up to 4TB; optional 2 x SATA III for 2.5" drives (RAID support)
• Ethernet: 2 x 2.5 Giga LAN (RJ45)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• WLAN/BT: optional (M.2 2230 E-Key)
• Dimensions: 400 x 320 x 79 mm; cut-out 359 x 273 mm; weight 4.2 kg
• Mounting: panel mount (default); VESA optional
• Enclosure: metal housing; fan cooling
• Environment: operating 0°C to 50°C, 10%–90% RH non-condensing; storage -10°C to 60°C
• IP rating: Front IP65; Certifications: CE, FCC
• I/O: 4 x USB 3.2 Gen2x1 (Type A), 1 x RS232/422/485, 1 x RS232, DP1.4a (DP++), HDMI 2.0b (optional), Mic in / Line out
• Expansion: M.2 2280 M-Key, M.2 2230 E-Key
• Power: 1 x 12V DC Din4 pin; adapter example 12V 220W
• Accessories: AC/DC adapter, power cord, VESA screws, mounting clips
