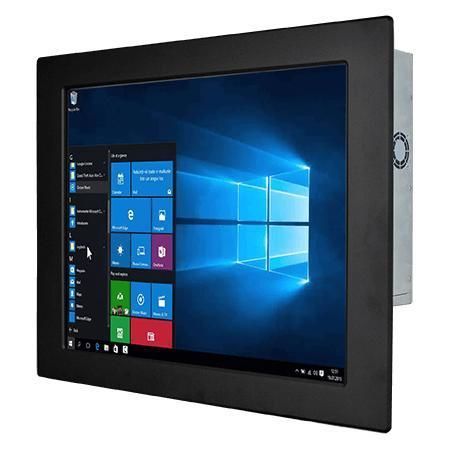

Resistive touch screen panel PC R17IAD7T-IPM1

touch screen17"Intel® Core i3

Overview
Winmate R17IAD7T-IPM1 is a 17-inch front IP65 industrial panel PC powered by 12th/14th Gen Intel® Core™ processors (Alder Lake / Raptor Lake variants). It is built for machine control, factory automation and operator HMI in wet, dusty or otherwise harsh environments, offering multiple I/O, dual 2.5GbE, M.2 expansion and flexible storage/memory options.

Key features

• 17-inch display, 1280 x 1024 resolution
• 12th / 14th Gen Intel® Core™ processors (i3 / i5 / i7 / i9 options)
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB (32GB per slot)
• Integrated dual 2.5 Gigabit Ethernet
• Multi-display support: DP 1.4a (default) and HDMI 2.0b (optional)
• Multiple I/Os including 4 x USB 3.2 Gen2x1 and serial ports
• Front IP65 protection; 12 V DC power input

Product highlights and description

• Front IP65 design protects against water and dust for wet or dusty industrial environments and suitable outdoor kiosk integration when correctly installed.
• Touch options: resistive touch (optional) or protection glass without touch (optional); surface options adapt to operator requirements.
• Rear rubber O-ring sealing on the front bezel for secure panel mounting and ingress protection when installed in cabinets or fixtures.
• Standard video interfaces (DP/HDMI/VGA) and broad I/O compatibility for embedded system integration.

Integration and I/O

• 4 x USB 3.2 Gen2x1 (10 Gbps, Type A) and multiple serial configurations (RS232/422/485)
• 2 x Intel® 2.5GbE RJ45 LAN ports; Mic in and Line out audio
• Expansion slots: M.2 2280 M-Key (NVMe SSD) and M.2 2230 E-Key (Wi‑Fi module)
• Power input: 1 x 12V DC (Din4 pin); adapter options available

Applications

• Machine control and factory automation
• Operator HMIs and embedded control panels
• Outdoor kiosks and terminals requiring front IP65 protection
• Industrial cabinets, racks and process control enclosures

Technical specifications

• Model: R17IAD7T-IPM1
• Display size: 17.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 85 / 85 / 80 / 80
• Active area: 337.920 x 270.336 mm
• Touch / glass: Resistive Touch Screen (Optional) or Protection Glass Without Touch (Optional)
• Processor (options): Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; also listed i3-14100T, i5-14500T, i7-14700T, i9-14900T
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, DDR5 4800MHz, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD (default); optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" SSD/HDD up to 2TB (RAID support)
• Ethernet controller: 2 x Intel® Ethernet Controller (2 x 2.5 Gbps RJ45)
• USB: 4 x USB 3.2 Gen2x1 (10Gbps, Type A)
• Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video outputs: 1 x DP1.4a (DP++), max 4096x2160@60Hz (Default); 1 x HDMI 2.0b, max 4096x2160@60Hz (Optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi module)
• WLAN / BT: optional support
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (does not support Wake on Touch)
• Power input: 1 x 12V DC, Din4 pin connector
• Power rating / adapter: 12V DC; adapter listed 12V 220W; accessory 100~240V AC to DC adapter and power cord
• Dimensions (W x H x D): 440 x 360 x 90 mm
• Cut-out: 394 x 314 mm
• Weight: 5.9 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal housing
• Cooling system: Fan design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• Buttons: 1 x Power Button; 1 x Reset Button
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
