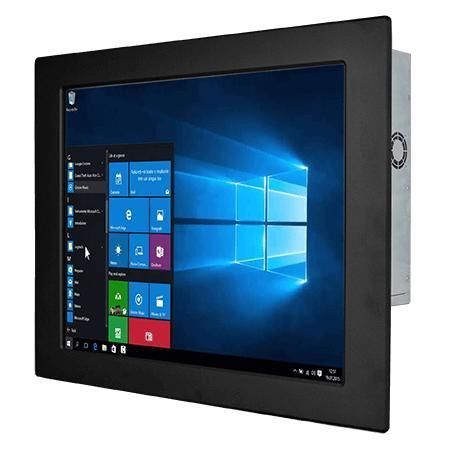

Resistive touch screen panel PC R19IT7T-IPM1

touch screen19"Intel® Core i5

Overview Winmate R19IT7T-IPM1 is a 19" Front IP65 industrial panel PC powered by Intel® Core™ i5 (Tiger Lake), designed for machine control, factory automation and operator HMI applications. It combines a sealed front bezel with multi‑display interfaces and a range of I/Os for embedded and OEM integrations.

Key features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (non‑vPro) or i5-1145G7E (with vPro)
• 19.0" display, 1280 x 1024 resolution, 250 nits
• Multi‑display support: DP / HDMI / LVDS / eDP
• Rich I/O: 2 x serial ports, 4 x USB 3.2 Gen2x1 (Type‑A), Gigabit + 2.5G LAN
• 12V DC single‑voltage input (Din4 pin connector)
• Front panel protection rating IP65 (water and dust)

Product highlights Compact narrow‑bezel front with rear O‑ring sealing for reliable panel mounting. Optional resistive touch or protection glass. Fanless metal housing and multiple mounting options (open frame, panel mount, VESA) facilitate OEM integration.

Certifications

• CE
• FCC

Applications

• Machine control and factory automation
• Operator HMI in industrial environments
• Outdoor/indoor kiosks and information terminals (when properly enclosed)
• Pool/Spa kiosks and other wet or dusty locations

Technical specifications

• Display: 19.0"; Resolution: 1280 x 1024; Brightness: 250 nits; Contrast 1000:1; Active area 376.32 x 301.06 mm
• Touch / Glass: Resistive touch (optional) or protection glass (optional)
• System: CPU Intel Core i5-1135G7 (up to 4.2 GHz) or i5-1145G7E (vPro option); Memory 2 x non‑ECC SO‑DIMM up to 64 GB
• Storage: 128 GB SSD default; options to 4 TB; 1 x SATA III for 2.5" drive; 1 x M.2 2280 M‑Key (NVMe)
• Network & Security: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45, TPM 2.0; optional WLAN/BT (M.2 2230)
• IO: 4 x USB 3.2 Gen2x1 (Type‑A); 1 x RS232/422/485 (default RS232); 1 x RS232; 1 x DP1.4 (default); 1 x HDMI 2.0 (optional); Mic in / Line out
• Mechanical: Dimensions 474 x 384 x 78 mm; Cut‑out 431 x 341 mm; Weight ≈ 6.9 kg; Metal housing; fanless
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non‑condensing; Front IP65
• Controls & Indicators: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Power & Accessories: 1 x 12V DC Din4 pin input; adapter 12V 120W (included/optional); AC/DC adapter, power cord, VESA screws, mounting clips
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (optional; Wake on Touch not supported)
