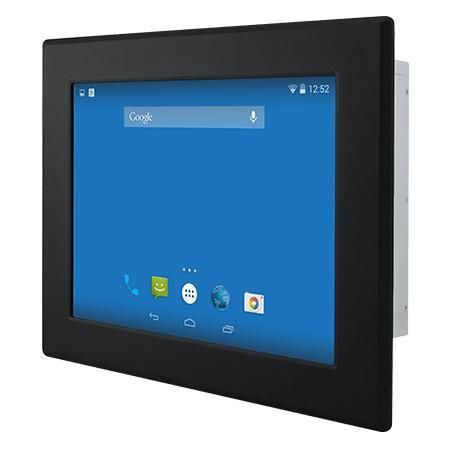

Resistive touch screen panel PC R15FA3S-IPC3

TFT LCD15"dual-core

Overview Winmate R15FA3S-IPC3 is a 15-inch Front IP65 Panel PC based on NXP i.MX6 designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators requiring a fanless, low-power embedded panel PC with front IP65 protection and long lifecycle availability.

Key Features

• 15.0" TFT LCD 1024 x 768 with resistive touchscreen (optional protection glass)
• NXP i.MX6 Dual Core 1.0 GHz (optional Quad Core)
• Front IP65 protection
• Onboard LPDDR3 1 GB (optional 2 GB)
• Onboard eMMC 16 GB (optional 32 GB)
• I/O: 1 x USB 2.0 (Type-A), 1 x RS-232/422/485, 1 x Micro SD slot, 1 x Mini USB (console), 1 x Micro HDMI (optional)
• Optional PoE (PD, IEEE 802.3at)
• Fanless design and ultra-low power consumption

Product highlights Waterproof front IP65 construction with a narrow bezel suitable for wet and dusty environments such as factory automation and outdoor kiosks. Intuitive operation via resistive touchscreen or optional protection glass depending on the application. Multiple video outputs (VGA support, Micro HDMI optional) for easy integration with embedded boards and industrial systems. Rear O-ring sealing on the front bezel simplifies panel or VESA mounting and prevents ingress of water and dust when installed.

Technical specifications

• Model: R15FA3S-IPC3
• Processor: NXP i.MX6 Dual Core 1.0 GHz (optional Quad Core)
• Memory: 1 GB LPDDR3 (default); 2 GB optional
• Storage: Onboard eMMC 16 GB (default); 32 GB optional
• Operating System: Optional Linux Ubuntu 18.04; Android 6.0; Debian 7.0; Linux 4.1.15 + QT 5.5
• WLAN / Bluetooth: optional via mPCIe module
• Display Size: 15.0 inches; Resolution: 1024 x 768; Brightness: 300 nits; Contrast: 2000:1; Viewing angles: 88/88/88/88; Active area: 304.1 x 228.1 mm
• Touch / Glass: Resistive touch (optional) / Protection glass without touch (optional)
• Dimensions (W x H x D): 400 x 320 x 59 mm; Cut out: 359 x 274 mm; Weight: 4.2 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing; Cooling: Fanless
• Operating humidity: 10% to 90% RH non-condensing; Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• USB Ports: 1 x Mini USB console; 1 x USB OTG; 1 x USB 2.0 Type-A
• Serial Port: 1 x RS-232/422/485 (default RS-232)
• LAN: 1 x RJ45 with PoE (PD, IEEE 802.3at)
• Video Out: Micro HDMI (optional); VGA supported (product family)
• Audio: 2 x speaker
• SD Card Slot: 1 x Micro SD
• Expansion: 1 x mPCIe slot (half-size Wi‑Fi module)
• CANBUS: 1 x CANBUS D-sub9
• Power input: 1 x 12 V DC, 2-pin terminal block; Adapter: 12 V 50 W
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips, driver CD & manual (where provided)
