TFT LCD panel PC R08IAN3S-IPU1

8.4"Intel® Processor N150800 x 600

Overview

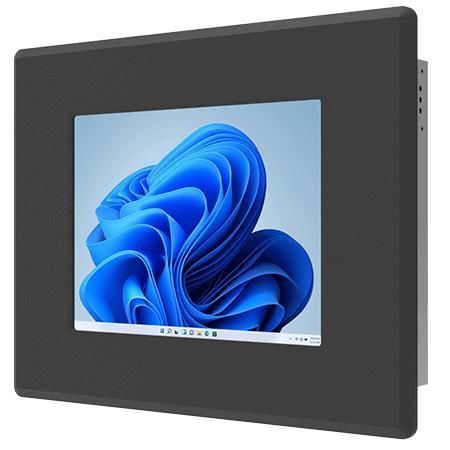

The Winmate R08IAN3S-IPU1 is an 8.4” front IP65 Panel PC for machine control, factory automation and operator HMI. Based on Intel® Twin Lake N100/N150-class processors with integrated UHD graphics, it provides dependable edge computing, real-time data handling and smooth graphical output in industrial environments. The system is fanless with a metal enclosure and supports panel and VESA mounting for flexible installation.

Key features

• 8.4” SVGA (800 x 600) TFT LCD, 600 nits
• Intel® Twin Lake N150 (optional) or N100 (default)
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• 2 x 2.5 Gigabit Ethernet controllers
• I/O: 1 x HDMI (optional), 1 x USB 3.2 Gen2 Type-C with DP Alt Mode, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 4 x COM
• Front IP65 protection; panel mount (default) and optional VESA mount

Product highlights

• Compact industrial HMI and panel PC for automation and monitoring tasks.
• Storage options include M.2 NVMe and 2.5″ SATA (SATA used when NVMe is absent) with multiple SSD capacities supported.
• Security support via TPM 2.0.
• Optional wireless connectivity via M.2 E-Key slot (Wi‑Fi/Bluetooth).
• Fanless metal housing for continuous operation in industrial settings.

Certifications

• CE
• FCC

Notes
Supports Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit) or Linux Ubuntu 24.04 (Ubuntu option does not support Wake on Touch).
