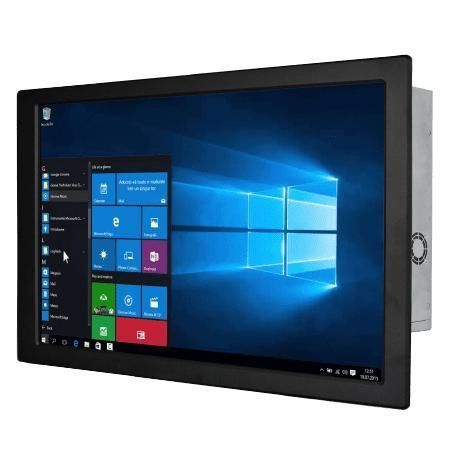

Resistive touch screen panel PC W24IAD7T-IPA2

24"Intel® Core i3Intel® Core i5

Overview
The W24IAD7T-IPA2 is a 24-inch front IP65 industrial panel PC designed for machine control, factory automation and operator HMI applications. Powered by 12th/14th Gen Intel® Core™ processors (Alder Lake S / T variants), it supports DDR5 memory, NVMe/SATA storage options and dual 2.5Gb Ethernet for demanding industrial integrations.

Key Features

• 24-inch 1920 x 1080 display, 250 nits
• Intel® Core™ i3/i5/i7/i9 options (12th/14th Gen T/S SKUs)
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB
• Integrated dual 2.5 Gigabit Ethernet
• DP1.4a (default) / HDMI 2.0b (optional) video outputs
• Multiple I/O: 4 x USB 3.2 Gen2x1, serial ports, audio
• Front IP65 protection for dust and water resistance
• 12V DC input, panel mount (VESA optional)

Product Highlights / Design & Usage
Front IP65 sealing with rubber O-ring enables reliable installation in wet or dusty enclosures such as factory floors, outdoor kiosks and poolside terminals. Flexible surface options include resistive touch or protection glass (both optional) to match operator interface requirements. Dual 2.5GbE and multiple high-speed I/O simplify integration with industrial controllers, IPCs and networked systems. Compact panel dimensions and rear O-ring make panel or cabinet mounting straightforward for OEM and integrator deployments.

Certifications
CE, FCC

Specifications (selection)

• Display: 24.0 inches, 1920 x 1080, 250 nits, 3000:1 contrast
• Processor options: Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; optional 14th Gen T-series SKUs
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD (default); optional up to 4TB NVMe; 2 x SATA III for 2.5" drives (optional, RAID)
• Ethernet: 2 x Intel® 2.5GbE
• Video: 1 x DP1.4a (DP++ default), 1 x HDMI 2.0b (optional), up to 4096 x 2160@60Hz
• USB / Serial: 4 x USB 3.2 Gen2x1; 1 x RS232/422/485 (default RS232) + 1 x RS232
• Power: 1 x 12V DC (Din4), adapter 12V 220W
• Dimensions / Cut-out: 606 x 376 x 85 mm / 560.5 x 327.5 mm
• Weight: 8.7 kg; Enclosure: metal; Cooling: fan
• Environment: Operating 0°C to 50°C; Humidity 10%–90% RH non‑condensing
• Front IP Rating: IP65
