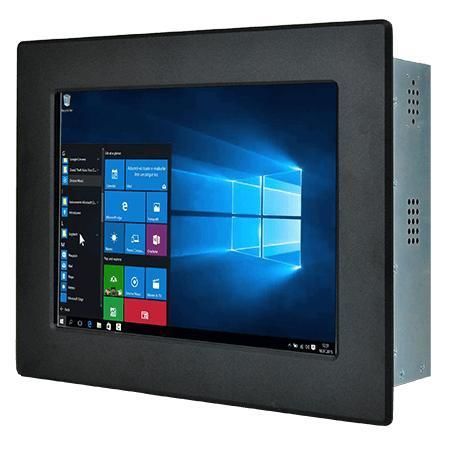

Resistive touch screen panel PC R10IP7T-IPA1WT

10.4"Intel® Pentium® N4200800 x 600

Overview
Winmate R10IP7T-IPA1WT is a 10.4-inch front IP65 wide-temperature Panel PC engineered for machine control, factory automation and operator HMI. It integrates an Intel® Pentium® N4200 processor, fanless thermal design, flexible storage and multiple I/O for reliable field deployment in wet, dusty or outdoor installations.

Key Features

• Intel® Pentium® N4200 (Apollo Lake), 1.10 GHz (up to 2.5 GHz)
• Flexible storage: 1 x 2.5" HDD bay, SSD sockets, M.2 2242 (B-key) and SATA options; RAID support
• Multiple I/O: 2 x serial ports, 4 x USB 3.2 Gen1 Type-A, 2 x Gigabit LAN
• 12 V DC input (DIN4); fanless design for maintenance-free operation
• Display outputs: DP 1.2 (up to 4096 x 2160 @60 Hz); optional HDMI 1.4, VGA

Product Details
Front IP65 waterproof bezel provides protection against water and dust for kiosks, factory panels and outdoor terminals while keeping a compact narrow-bezel profile.

Touch options include resistive touchscreen or protection glass (non-touch) to match operator requirements.

DP is default display interface; HDMI and VGA are available as options for flexible system integration. Rear rubber O-ring on the front bezel ensures sealing between bezel and customer fixture for cabinet or rack installations.

Certifications
CE, FCC

Specifications

• Display Size: 10.4 inches — Resolution: 800 x 600 — Brightness: 400 nits — Contrast: 700:1 — Active Area: 211.2 x 158.4 mm
• Processor: Intel® Pentium® N4200 (1.10 GHz, up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB; 2 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® Gigabit LAN
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) or Linux (Ubuntu options)
• WLAN/BT: optional (M.2 2230 E-key)
• Mechanical: 284 x 234 x 82 mm; Cut out: 262 x 199 mm; Weight: 2.4 kg; Metal enclosure; Open frame default; Panel/VESA mount optional
• Operating Temperature: -20°C to 60°C; Storage: -30°C to 70°C; Operating Humidity: 30%–90% RH non-condensing
• IP Rating: Front IP65
• I/O: 4 x USB3.2 Gen1 Type-A; Serial: RS232/422/485 options; 2 x RJ45 Gigabit LAN; Video: DP1.2 (default), HDMI1.4 (opt), VGA (opt); Audio: Mic in, Line out, 2 x speaker
• Expansion: 1 x M.2 2242 B-key (SATA SSD), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
• Power: 1 x 12V DC (DIN4) — Adapter recommended 12V 50W
• Indicators / Controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips, driver & manual
