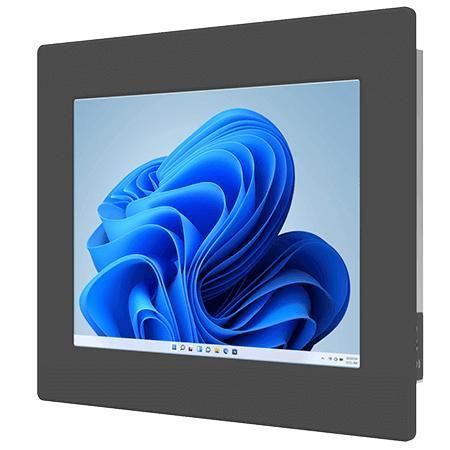

Resistive touch screen panel PC R12IAN3S-IPM2

TFT LCD12.1"Intel® Processor N150

Overview
The Winmate R12IAN3S-IPM2 is a 12.1" front IP65 industrial panel PC for machine control, factory automation and operator HMI applications. Based on Intel® Twin Lake processors (N100 default, N150 optional), it delivers reliable embedded computing, UHD-class integrated graphics and a compact fanless metal housing for harsh industrial environments.

Key features

• 12.1" XGA (1024 x 768) TFT LCD, 500 nits brightness, 1000:1 contrast
• Intel® Twin Lake platform: N100 (default) or N150 (optional)
• SO-DIMM DDR5-4800 memory, single slot, up to 16 GB
• NVMe SSD storage (128 GB default, scalable up to multiple TB); optional SATA III for 2.5" SSD/HDD
• Dual Intel® 2.5 Gigabit Ethernet ports
• Comprehensive I/O: USB 3.2 Gen2 Type-C (DP Alt), USB 3.2 Type-A, USB 2.0, multiple COM ports, optional HDMI
• Front protection rating IP65 for dust and water resistance
• Panel mount standard; VESA mount optional
• Metal housing, fanless design; TPM 2.0 security support

Highlights

• Compact industrial display with clear XGA visuals for control panels and HMIs
• Scalable performance options via N100/N150 and upgradable memory/storage
• Versatile connectivity for integration into automation networks and field devices
• High-speed networking with dual 2.5 GbE for industrial data transfer

Certifications

• CE
• FCC

Accessories (included / optional)

• 100 ~ 240V AC to DC adapter (12V 50W)
• Power cord
• Mounting clips; VESA screws (optional)

Technical specifications

• Model: R12IAN3S-IPM2
• Display: 12.1" XGA (1024 x 768), brightness 500 nits, contrast 1000:1, active area 245.76 x 184.32 mm
• Touch / Glass: Optional resistive touch or protection glass without touch
• Processor: Intel® N100 (default, up to 3.40 GHz) or Intel® N150 (optional, up to 3.60 GHz)
• Memory: 4 GB default; options 8 GB / 16 GB (1 x SO-DIMM DDR5-4800, max 16 GB)
• Storage: 128 GB NVMe SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (only if NVMe not present)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet
• WLAN / Bluetooth: Optional via M.2 2230 E-Key slot
• USB: 1 x USB 3.2 Gen2 Type-C (DP Alt), 2 x USB 3.2 Gen1 Type-A, additional USB 2.0 ports
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x speakers
• Indicators & Controls: Power LED, storage LED, power button, reset button, brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack; adapter 12V 50W
• Mechanical: Dimensions 324 x 274 x 57 mm; cut-out 303 x 234.5 mm; weight 2.6 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Metal housing; cooling: fanless
• Environment: Operating temperature 0°C to 50°C; storage -10°C to 60°C; operating humidity 10% to 90% RH non-condensing
• Front IP rating: IP65
• Security: TPM 2.0
