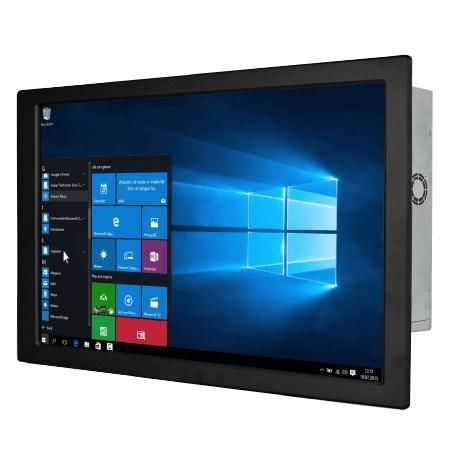

Resistive touch screen panel PC W22IAD7T-IPA3

21.5"Intel® Core i3Intel® Core i5

Overview
Winmate W22IAD7T-IPA3 is a 21.5" Front IP65 Panel PC based on 12th/14th Gen Intel® Core™ processors (Alder Lake S and optional T-series). It is designed for machine control, factory automation and operator HMI, providing a waterproof/dustproof front bezel for wet, dusty or outdoor installations. Scalable memory and storage, multiple I/O and multi-display outputs enable reliable operation in industrial and mission-critical environments.

Key features

• 21.5" FHD display (1920×1080), 250 nits
• Intel® Core™ i3/i5/i7/i9 (Alder Lake S / T options)
• 2× SODIMM DDR5 4800MHz, up to 64GB
• Dual Intel® 2.5Gb Ethernet
• Multi-display support: DP1.4a (DP++), optional HDMI2.0b
• 4× USB 3.2 Gen2, serial ports, audio I/O
• Front IP65 rated bezel; 12V DC power input

Waterproof Front IP65 Design
The front bezel includes a rubber O‑ring seal to ensure IP65 protection when panel-mounted. This prevents ingress of water and dust for applications such as outdoor kiosks, parking and industrial enclosures when correctly installed.

Touch and Operation
The unit supports optional resistive touch or a protection glass (no touch). Surface options allow specification flexibility for operator interfaces and installation requirements.

Interfaces and Integration

• Video: DP1.4a (DP++), optional HDMI2.0b; supports up to 4096×2160@60Hz
• Storage/expansion: M.2 2280 NVMe, M.2 2230 E-Key for Wi‑Fi; optional 2× SATA III 2.5" (RAID support)
• I/O: 4× USB3.2 Gen2, 1× RS232/422/485 (default RS232) + 1× RS232, Mic in, Line out

Application suitability
Suitable for machine control, factory HMI, outdoor kiosks, parking, fuel stations, pools and other locations requiring front protection against water, dust and humidity when integrated into a sealed enclosure.

Specifications

• Model: W22IAD7T-IPA3
• Display: 21.5" 1920×1080, 250 nits, 3000:1 contrast, viewing angles 89/89/89/89
• Processor examples: i3-12100TE (default); i5-12500TE; i7-12700TE; i9-12900TE; optional i3/i5/i7/i9 T-series (14th gen examples listed)
• Chipset: Intel® R680E
• Memory: 2× non-ECC SO‑DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD default; optional up to 4TB NVMe; optional 2× SATA III 2.5" up to 2TB (RAID)
• LAN: 2× Intel® 2.5GbE
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (Linux: Wake on Touch not supported)
• Power: 1× 12V DC (Din4), adapter 12V 220W (example)
• Dimensions: 534×349×90 mm; cut-out: 508×302 mm; weight: 7.2 kg
• Mounting: panel mount (default); VESA optional
• Enclosure: metal; cooling: fan design
• Operating: 0°C to 50°C; storage: -10°C to 60°C; humidity: 10%–90% RH non-condensing
• Front rating: IP65; Certifications: CE, FCC
