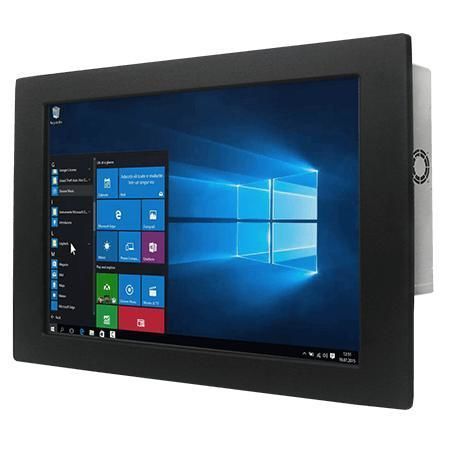

Resistive touch screen panel PC W18IF7T-IPA2

touch screenLCD18.5"

Overview
Winmate W18IF7T-IPA2 is an 18.5" Front IP65 Panel PC designed for machine control, factory automation and operator HMI. It integrates Intel® 9th Gen Core™ i3/i5/i7 processors (Coffee Lake Refresh), multiple I/O and flexible storage to support industrial and embedded applications.

Key features

• 18.5" display, 1366 x 768 resolution, 450 nits brightness
• Intel® Core™ i3 / i5 / i7 (Coffee Lake Refresh) processor options
• Flexible storage: M.2 NVMe/SATA, 2.5" HDD/SSD bay; RAID support (optional)
• Multiple I/O: 4 x USB 3.2 Gen1, 2 x Gigabit LAN, 2 x serial ports
• 12 V DC lockable power input (Din4)
• Display outputs: DP 1.2 and HDMI 1.4 (dual display support)

Waterproof front IP65 design
Front bezel rated IP65 for water and dust resistance. Narrow-bezel design and rear O‑ring seal allow reliable panel mounting in wet, dusty or outdoor kiosk environments while maintaining accessibility for maintenance.

Touch and surface options

• Resistive touch screen (optional) for interactive HMI
• Protective glass option without touch for non-interactive installations

Video and signal interfaces
Supports VGA/HDMI/DisplayPort interfaces for integration with embedded boards and industrial controllers. Supports dual display output and common video resolutions up to 4096 x 2304 on DP/HDMI depending on configuration.

Mechanical & installation

• Dimensions: 520 x 340 x 70 mm; cut-out: 462 x 285 mm
• Panel-mount design (default); VESA mount optional
• Metal housing with fan cooling; rear O-ring rubber seal on front bezel for reliable sealing
• Weight: ~5.3 kg

Certifications

• CE
• FCC

Technical specifications

• Model: W18IF7T-IPA2
• Brand: Winmate
• Display: 18.5", 1366 x 768, 450 nits, 1000:1 contrast, viewing angles 85/85/80/80
• Processor options: Intel® Core™ i7-9700TE / i5-9500TE / i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM up to 64 GB
• Storage: 1 x M.2 2280 M-Key (NVMe/SATA), 1 x M.2 2242 (where applicable), 2 x SATA III for 2.5" drives
• Ethernet: 2 x Intel® Gigabit LAN
• Security: TPM 2.0
• I/O: 4 x USB 3.2 Gen1 Type-A; 1 x RS232/422/485 + 1 x RS232; DP1.2 (default), HDMI1.4 (optional); Mic-in, Line-out, 2 x speakers
• Expansion: M.2 2280/2242 M-Key, M.2 2230 E-Key (Wi‑Fi), PCIe 3.0 x16 (optional)
• Operating temp: 0 °C to 50 °C; humidity 10%–90% RH non-condensing
• Power input: 12 V DC (Din4 lockable); adapter 12 V 120 W
