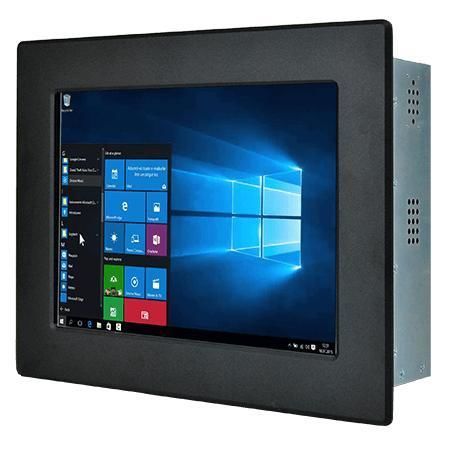

Resistive touch screen panel PC R10IE3S-IPA1WT

TFT LCD10.4"Intel® Celeron® N6211

Overview
Winmate R10IE3S-IPA1WT is a 10.4-inch industrial front IP65 panel PC powered by Intel® Celeron® Elkhart Lake N6211. Designed for machine control, factory automation and operator HMI, it provides a waterproof front IP65 design, wide operating temperature range, multiple I/O and expansion options, and long lifecycle availability for industrial and OEM applications.

Key Features

• 10.4-inch TFT LCD
• Intel® Celeron® Elkhart Lake N6211 Processor
• 1 x SO-DIMM, up to 16GB DDR4
• 2 x Gigabit (2.5G) Ethernet
• Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0
• Front IP65 protection

Product Highlights
Waterproof Front IP65 Design: Front IP65-rated bezel and sealing design for wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosks.

Intuitive Operations with the Touchscreen: Offers flexible surface options including optional resistive touch screen or protection glass (non-touch) to match application needs.

HDMI and VGA Signal Interfaces: Provides common video outputs for easy integration with embedded systems (VGA and optional HDMI available for display output flexibility).

Easy Installation: Rear rubber O-ring on front bezel seals the front bezel to the customer fixture to prevent water/dust ingress; supports panel-mount installation and optional VESA mount for different deployments.

Suitable for Outdoor Kiosk Applications: When properly installed in an enclosure, the IP65 front rating helps withstand water, humidity, temperature extremes and airborne particles for outdoor kiosk use.

Specifications

• Display — Size: 10.4 inches
• Display — Resolution: 800 x 600
• Display — Panel Brightness: 400 nits
• Display — Contrast Ratio: 700:1
• Display — View Angles: 80, 80, 70, 60
• Display — Active Area: 211.2 x 158.4 mm
• Display — Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4GB (Default); optional 8GB, 16GB (1 x SO-DIMM, max 16GB DDR4)
• Storage: 128GB SSD (Default); optional 256GB, 512GB, 1TB, 2TB; 1 x SATA III for 2.5" SSD/HDD (Optional)
• Ethernet controller: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
• WLAN / Bluetooth: Support optional (M.2 2230 E-Key slot for Wi-Fi module)
• Expansion: 1 x M.2 2242 B-Key slot (for SATA III SSD); 1 x M.2 2230 E-Key slot (for Wi-Fi module)
• USB Ports: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
• Serial Ports: 1 x RS232/422/485 (Default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45 Connector
• Video: 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker
• Indicators: 1 x LED Indicator for power; 1 x LED Indicator for storage
• Brightness Control: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, 2.5φ DC jack
• Power Rating / Adapter: 12V DC; Adapter: 12V 50W
• Buttons: 1 x Power Button; 1 x Reset Button
• Mechanical — Dimension: 284 x 234 x 55 mm
• Mechanical — Cut out: 262 x 199 mm
• Mechanical — Weight: 2.4 kg
• Mechanical — Mounting: Panel mount (Default); VESA mount (Optional)
• Mechanical — Enclosure: Metal housing; Fanless design
• Environment — Operating Humidity: 30% to 90% RH, non-condensing
• Environment — Operating Temperature: -20°C to 60°C
• Environment — Storage Temperature: -30°C to 70°C
• IP Rating: Front IP65
• Certification: CE, FCC
• Accessories: 100–240V AC to DC adapter; power cord; VESA screws; mounting clips
