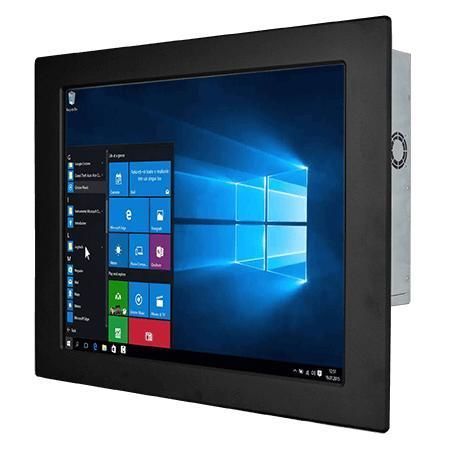

Resistive touch screen panel PC R17IP7T-IPM1

LCD17"Intel® Pentium® N4200

Overview
Winmate R17IP7T-IPM1 is a 17-inch front IP65 Panel PC powered by Intel® Pentium® N4200 (Apollo Lake). It is designed for machine control, factory automation and operator HMI in wet, dusty or outdoor environments, with a narrow bezel, fanless metal housing and long lifecycle availability.

Key features

• Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
• Flexible storage: 2.5-inch HDD bay, M.2 2242 B-key for SATA III SSD and additional SSD socket options
• Multiple I/O: 2 x serial ports (configurable), 4 x USB 3.2 Gen1 Type-A
• Dual Intel® Gigabit LAN controllers; TPM 2.0 support
• 12 V DC input (Din4 pin); 12 V 84 W adapter available
• Display outputs: DisplayPort 1.2 default (up to 4096x2160@60Hz); HDMI 1.4 and VGA optional
• Front IP65 waterproof bezel for wet and dusty applications

Product details

• Waterproof front IP65 design with rubber O-ring sealing on front bezel for panel mounting
• Touch and glass options: resistive touch screen (optional) or protection glass without touch
• HDMI, VGA and DisplayPort interfaces for flexible display integration and dual-display support
• Easy installation into cabinets or racks; panel mount default with optional VESA mount
• Fanless metal housing suitable for industrial deployment and outdoor kiosks when properly installed

Certifications

• CE
• FCC

Technical specifications

• Model: R17IP7T-IPM1
• Brand: Winmate
• Display: 17.0 inch, 1280 x 1024, 350 nits, 1000:1 contrast, viewing angles 85/85/80/80; active area 337.920 x 270.336 mm
• Touch/Glass: Resistive touch optional; protection glass optional
• Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: Default 128 GB SSD; optional 256/512 GB/1 TB; 2 x SATA III for 2.5-inch drives; M.2 2242 B-key for SATA SSD
• Ethernet: 2 x Intel® Gigabit Ethernet controllers (RJ45)
• Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional), 1 x VGA (optional)
• USB: 4 x USB3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232), +1 x RS232 (configurable)
• Audio: Mic in, Line out, 2 x speakers
• Expansion: M.2 2242 B-key (SATA III), M.2 2230 E-key (Wi‑Fi), PCIe 2.0 x1 optional
• Indicators/Controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Dimensions: 440 x 360 x 81 mm; Cut-out: 394 x 314 mm; Weight: 5.9 kg
• Mounting: Panel mount default; VESA mount optional
• Enclosure: Metal housing; Cooling: Fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage -10°C–60°C
• IP rating: Front IP65
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips, driver CD & manual
• Power input/rating: 1 x 12V DC (Din4 pin); adapter 12V 84W
