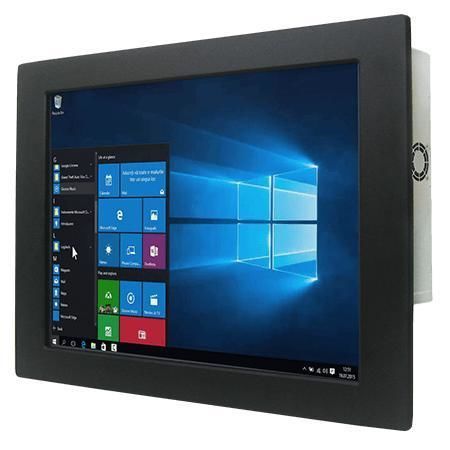

Resistive touch screen panel PC W15IAD7T-IPA2

PCAP touchscreenprojected capacitive touchscreen15.6"

Overview
Winmate W15IAD7T-IPA2 is a 15.6-inch Front IP65 Panel PC engineered for machine control, factory automation and operator HMI in wet, dusty or outdoor industrial environments. It provides configurable Intel® Core™ CPU options, flexible I/O and long-term availability for OEMs and system integrators.

Key Features

• 15.6” 1366 x 768 display, 400 nits
• 12th Gen Intel® Core™ Alder Lake S / optional 14th Gen T-series CPUs: i9 / i7 / i5 / i3
• 2 x SO-DIMM DDR5 4800MHz, up to 64 GB
• Dual integrated 2.5 Gigabit Ethernet
• DP 1.4a (DP++ default) and optional HDMI 2.0b for multi-display
• 4 x USB 3.2 Gen2x1 (Type-A), serial ports, audio I/O
• Front IP65 rated for water and dust resistance
• 12 V DC power input (Din4)

Product Details
Waterproof Front IP65 Design
The IP65 front bezel with rubber O-ring seal prevents water and dust ingress while keeping a compact footprint. Suitable for factory floors, outdoor kiosks and other demanding sites.

Intuitive Touch Operations
Available surface options include cover glass, resistive touch (optional) and projected capacitive (PCAP) to match operator interaction needs.

Signal Interfaces
Standard interfaces (DP, optional HDMI, VGA) and multiple USB/serial ports enable easy integration with embedded boards and external systems.

Easy Installation
Designed for panel mounting by default with optional VESA mount; rear O-ring simplifies sealed installation in cabinets or racks.

Suitable for Outdoor Kiosk Applications
When properly enclosed, the unit withstands humidity, temperature variation, sunlight and dust—appropriate for parking, fueling stations, poolside kiosks and similar installations.

Certifications
CE and FCC certified.

Characteristics / Technical specifications

• Display: 15.6 inches, 1366 x 768, 400 nits, 500:1 contrast, viewing angles 85/85/80/80, active area 344.232 x 195.536 mm
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Processor (configurable): Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; optional 14th Gen T-series i3-14100T / i5-14500T / i7-14700T / i9-14900T
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64 GB (32 GB per slot)
• Storage: 128 GB SSD default; options 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" drives (RAID support)
• Ethernet: 2 x Intel® 2.5 Giga LAN RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported on Ubuntu)
• WLAN/BT: Optional via M.2 2230 E-Key
• Mechanical: 400 x 280 x 84.5 mm; cut-out 375 x 238 mm; weight ~3.9 kg
• Mounting: Panel mount (default); VESA optional
• Enclosure: Metal housing; Cooling: fan design
• Environment: Operating humidity 10%–90% RH non-condensing; operating temp 0°C–50°C; storage temp -10°C–60°C
• IP Rating: Front IP65
• IO Ports: 4 x USB 3.2 Gen2x1 (10 Gbps Type-A); serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; video: 1 x DP1.4a (DP++ default) up to 4096x2160@60Hz; HDMI 2.0b optional
• Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Power: 1 x 12 V DC (Din4); adapter listed 12 V 220 W
• Controls: Power and Reset buttons
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips
