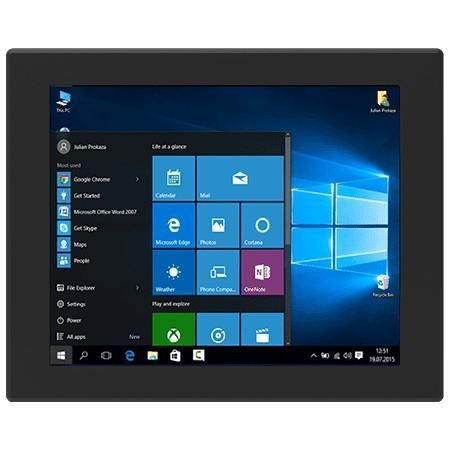

Resistive touch screen panel PC R19IT3S-IPA1

TFT LCD19"Intel® Core i5

Overview
Winmate R19IT3S-IPA1 is a 19-inch Front IP65 industrial panel PC powered by Intel® Core™ i5-1135G7. Designed for machine control, factory automation and operator HMI, it features a fanless thermal design, front-side IP65 protection, narrow bezel for compact panel integration and multiple expansion options for embedded systems.

Key features

• 19" TFT XGA LCD (1280 x 1024), 400 nits, 1000:1
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power consumption
• Front IP65 protection against water and dust
• 1 x SO-DIMM DDR4 3200 MHz (Max. 32 GB)
• Integrated dual Intel® Ethernet (2 x 2.5 Gbps)
• M.2 expansion for SSD or Wi‑Fi modules

Waterproof Front IP65 Design
The front IP65 structure provides reliable sealing for wet and dusty environments. A rear rubber O-ring on the front bezel helps maintain the IP65 rating when panel-mounted, making the unit suitable for kiosks, enclosed operator stations and industrial control cabinets.

Touch and Display Options
Available with optional resistive touch or protection glass without touch. The 19" XGA display delivers wide viewing angles and sufficient brightness for indoor industrial applications where readability and integration are required.

Interfaces and Integration
Designed for system integration with VGA and optional HDMI video outputs, 2 x USB 3.2 Gen2 Type-A, serial ports (RS232/422/485), dual Intel® Ethernet, audio with built-in speakers and M.2 slots (2242 SATA / 2280 NVMe) for storage or wireless modules. Panel and VESA mounting options simplify installation.

Certifications & Reliability
Meets CE and FCC requirements. Fanless thermal architecture and metal housing contribute to long-term reliability in industrial environments.

Applications
Intended for machine control, factory automation, operator HMI, outdoor kiosks and other embedded industrial use cases that require front-side ingress protection and dependable computing performance.

Technical specifications

• Model: R19IT3S-IPA1
• Display size: 19.0 inches
• Resolution: 1280 x 1024 (XGA)
• Brightness: 400 nits; Contrast ratio: 1000:1; Viewing angles: 85/85/80/80
• Active area: 376.32 x 301.06 mm
• Touch / glass: Resistive touch (optional) or protection glass (optional)
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB; 1 x SO-DIMM DDR4 3200 MHz (Max. 32 GB)
• Storage: 128 GB SSD default; options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD (up to 2 TB, optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise 64-bit (opt.), Windows 11 Pro 64-bit (opt.), Linux Ubuntu 22.04 (opt.; Wake on Touch not supported)
• WLAN / Bluetooth: Optional via M.2 2230 E-Key
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2242 SATA III, 1 x M.2 2230 E-Key (Wi‑Fi)
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video: 1 x HDMI 2.0 (optional); VGA available
• Audio: 2 x speakers
• Indicators: Power LED, Storage LED
• Brightness control: 1 x brightness knob
• Power input: 1 x 12 V DC, 2.5φ DC jack; Adapter example: 12 V 120 W
• Buttons: 1 x Power; 1 x Reset
• Accessories: 100~240 V AC to DC adapter; power cord; VESA screws; mounting clips
• Mechanical dimensions: 474 x 384 x 77 mm; Cut-out: 431 x 341 mm
• Weight: 6.9 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
