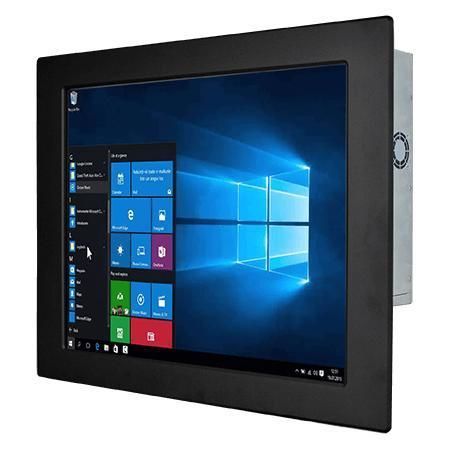

Resistive touch screen panel PC R17IF7T-IPM1

17"Intel® Core i3Intel® Core i5

Overview
Winmate R17IF7T-IPM1 is a 17" front IP65 panel PC designed for machine control, factory automation and operator HMI. It integrates Intel® 9th Gen. Core™ i3/i5/i7 processors, flexible storage options, multiple I/O ports and a front IP65 bezel to operate in wet or dusty environments. Intended for long-lifecycle industrial deployments.

Key Features

• 17" display, 1280 x 1024 resolution
• Intel® 9th Gen. Core™ i3 / i5 / i7 (Coffee Lake Refresh)
• Flexible storage: 2.5" HDD slot + SSD socket, M.2 NVMe option
• Multiple I/Os: 2 x serial, 4 x USB 3.2 Gen1, 2 x Gigabit LAN
• 12 V DC lockable Din4 power input
• DisplayPort support up to 4096 x 2304 @ 60 Hz; HDMI option up to 4096 x 2304 @ 24 Hz

Waterproof Front IP65 Design
Front bezel rated IP65 for water and dust resistance. Compact narrow-bezel construction with rear O-ring sealing to maintain protection when mounted in panels or enclosures.

Intuitive Operations with the Touchscreen
Available with resistive touchscreen or protection glass (non-touch) to match application needs; surface options allow selection by operation environment and maintenance profile.

Dual Display Output and Signal Interfaces
Provides DP (default), optional HDMI and VGA-compatible interfaces to support single or dual-display configurations and straightforward integration with embedded boards and controllers.

Easy Installation
Rear rubber O-ring on the front bezel seals against customer fixtures to prevent ingress of water and dust. Designed for panel mount (default) with optional VESA mounting for flexible integration.

Suitable for Outdoor Kiosk Applications
When correctly embedded in an enclosure and installed, the front IP65 rating supports outdoor kiosk and terminal applications (parking, fuel stations, pools, interactive kiosks) that require front-end protection from water and particles.

Technical specifications

• Display Size: 17.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch (optional)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80
• Active Area: 337.920 x 270.336 mm
• Processor (options): Intel® Core™ i7-9700TE (Default); Intel® Core™ i5-9500TE; Intel® Core™ i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB; 2 x SATA III for 2.5" SSD/HDD (RAID 0/1 optional); 1 x M.2 2280/2242 M-Key (NVMe/SATA); 1 x M.2 2230 E-Key for Wi‑Fi
• Ethernet: 2 x Intel® Gigabit Ethernet controllers (RJ45)
• Security: TPM 2.0
• Operating System (optional): Windows 10 IoT Enterprise (64-bit); Linux Ubuntu
• WLAN / BT: optional (M.2 Wi‑Fi module slot)
• Mechanical Dimensions: 440 x 360 x 81 mm
• Cut out: 394 x 314 mm
• Weight: 5.9 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal housing
• Cooling: Fan design (active cooling)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certification: CE, FCC
• I/O Ports: 4 x USB 3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (Default RS232) + 1 x RS232; LAN: 2 x Giga LAN (RJ45)
• Video: 1 x DP 1.2 (Default); 1 x HDMI 1.4 (Optional)
• Audio: 1 x Mic In; 1 x Line Out; 2 x Speaker
• Expansion: 1 x M.2 2280/2242 M-Key (NVMe/SATA); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 3.0 x16 slot (optional)
• Indicators & Controls: LED power; LED storage; brightness adjustment knob; power button; reset button
• Power Input: 1 x 12V DC, Din4 pin connector (lockable)
• Power Rating / Adapter: 12V DC (example adapter 12V 120W)
• Accessories: AC 100~240V to DC adapter, power cord, VESA screws, mounting clips, manual
