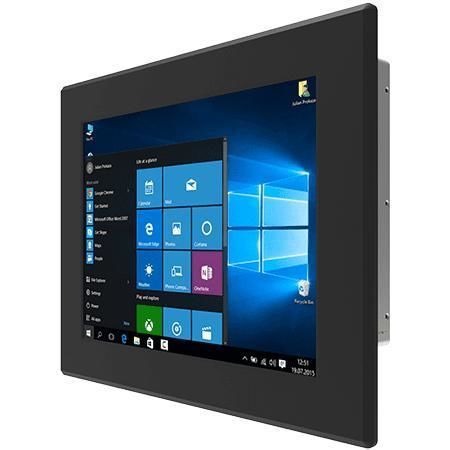

Panel PC with touch screen R15IT3S-IPC3

resistive touch screenTFT LCD15"

Overview
Winmate R15IT3S-IPC3 is a 15-inch industrial front IP65 panel PC for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz) CPU with a fanless cooling design for low power consumption and long-term reliability. The sealed front bezel with front IP65 rating supports use in wet and dusty environments while offering multiple I/O, expansion slots and flexible mounting options.

Key features

• 15-inch TFT XGA LCD (1024 x 768), 300 nits
• Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• Front IP65 protection with rubber O-ring bezel seal
• 1 x SO-DIMM DDR4 3200 MHz (max 32 GB)
• Dual Intel Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• M.2 expansion: Key M for 2242 SATA III / optional 2280 NVMe; Key E for Wi‑Fi

Waterproof Front IP65 Design
The front IP65 bezel with rubber O-ring prevents ingress of water and dust from the front, enabling reliable operation in factory automation, outdoor kiosks and other exposed installations where a sealed front is required.

Intuitive Operations with Touchscreen
Surface options include resistive touch or protection glass (non-touch) so the unit can be configured for operator HMI or protected display use depending on the application.

Signal Interfaces and Integration
Equipped with VGA and optional HDMI 2.0 plus multiple USB and serial ports to integrate easily with embedded boards and industrial systems. Expansion slots support SSD and wireless modules for field configurations.

Easy Installation
Design includes a rear rubber O-ring on the front bezel for sealing against customer fixtures; supports panel mount by default and optional VESA mount for alternate installations.

Suitable for Outdoor Kiosk Applications
When correctly installed in an enclosure, the front IP65 rating and rugged metal housing help the unit withstand water exposure, humidity, sunlight and airborne particles — suitable for parking kiosks, fuel stations, poolside or other outdoor locations.

Specifications

• Display: 15.0 inch TFT XGA, 1024 x 768; Brightness 300 nits; Contrast 2000:1; View angles 88/88/88/88; Active area 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default; options 8/16/32 GB; 1 x SO-DIMM DDR4 3200 MHz (max 32 GB)
• Storage: 128 GB SSD default; optional 256/512 GB /1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (no Wake on Touch)
• WLAN / BT: optional (M.2 2230 E-Key)
• Serial: 1 x RS232/422/485 (default RS232, configurable) + 1 x RS232
• USB: 2 x USB3.2 Gen2x1 (Type-A) plus additional ports per configuration
• Video: 1 x HDMI 2.0 (optional); VGA supported
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators / Controls: LED power, LED storage, brightness knob, power and reset buttons
• Power: 1 x 12 V DC (2.5φ DC jack); adapter 12 V 120 W (typical), accessories: AC/DC adapter 100~240 V, power cord
• Mechanical: Dimensions 400 x 320 x 69 mm; Cut-out 359.6 x 274.1 mm; Weight 5.1 kg; Metal housing
• Mounting: Panel mount default; VESA optional
• Cooling: Fanless
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage -10°C–60°C
• IP Rating: Front IP65
• Certifications: CE, FCC
