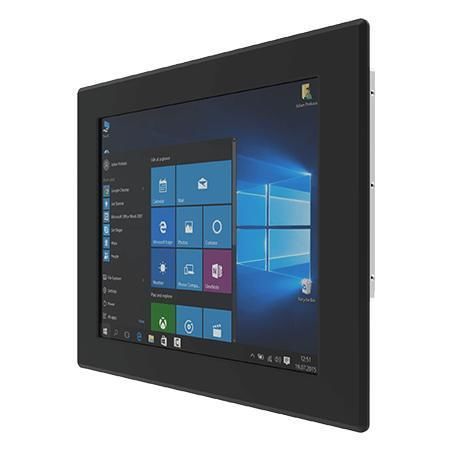

Resistive touch screen panel PC R17IT7T-IPM1

17"Intel® Core i5Intel® Tiger Lake-U

Overview
Winmate R17IT7T-IPM1 is a 17" front IP65 industrial panel PC powered by Intel® Core™ i5 (Tiger Lake), designed for machine control, factory automation and operator HMI. It provides long lifecycle availability, stable hardware integration and a sealed front for wet or dusty industrial environments.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 17.0" display, 1280 x 1024 resolution, 350 nits
• Multi-display support via DP / HDMI / LVDS / eDP
• Multiple I/Os: 2 serial ports, 4 x USB 3.2 Gen.1
• 12V single-voltage power input (Din4 pin)
• Front IP65 water- and dust-proof design

Product Details
Waterproof Front IP65 Design: Front IP65 rating ensures resistance to water and dust while maintaining a compact narrow bezel suitable for panel integration in factory automation, outdoor kiosks and wet environments.

Touch and Surface Options: Configurable with resistive touch screen (optional) or protection glass without touch (optional) to match operator and application requirements.

Signal Interfaces: Includes DP1.4 (default) and optional HDMI 2.0, plus VGA support for easy integration with embedded boards and systems; supports LVDS/eDP for panel integration.

Installation: Rear O-ring rubber sealing on the front bezel enables sealing between the bezel and customer fixtures; designed for straightforward panel mounting or optional VESA mounting.

CERTIFICATIONS
CE, FCC

Technical specifications

• Display - Size: 17.0 inches; Resolution: 1280 x 1024; Touch/Glass: Resistive Touch (optional) or Protection Glass (optional); Brightness: 350 nits; Contrast: 1000:1; Active Area: 337.920 x 270.336 mm
• System Specification - Processor: Intel Core i5-1135G7 (up to 4.2GHz) / i5-1145G7E optional; Memory: 2 x non-ECC SO-DIMM up to 64GB; Storage: 128GB SSD default, optional up to 4TB; Ethernet: 2 x Intel® controllers; TPM 2.0; OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• Mechanical - Dimensions: 440 x 360 x 81 mm; Cut out: 394 x 314 mm; Weight: 5.9 kg; Mounting: Panel mount default, VESA optional; Enclosure: Metal housing; Cooling: Fanless
• Environment - Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C; IP rating: Front IP65
• IO Ports - USB: 4 x USB 3.2 Gen2x1 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45; Video: 1 x DP1.4 (default), 1 x HDMI 2.0 (optional); Audio: Mic in, Line out; Expansion: M.2 2280 M-Key, M.2 2230 E-Key, PCIe 4.0 x16 (x4 signal)
• Control & Accessories - Power and reset buttons, brightness adjustment knob; Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
• Power - Input: 12V DC (Din4 pin); Adapter example: 12V 120W
