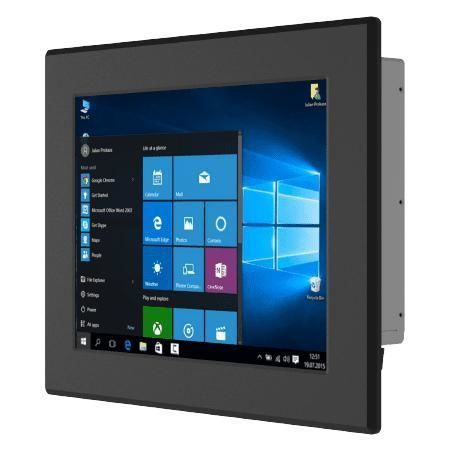

Resistive touch screen panel PC R15IT7T-IPA3WT

15"Intel® Core i51024 x 768

Overview
Winmate R15IT7T-IPA3WT is a 15-inch front IP65 wide-temperature Panel PC based on Intel® Core™ Tiger Lake i5 processors. It is built for machine control, factory automation and operator HMI in wet, dusty or otherwise demanding industrial environments requiring long lifecycle availability and flexible integration options.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (no vPro) or i5-1145G7E (with vPro)
• 15.0" display, 1024 x 768 resolution, 500 nits brightness
• Front IP65 protection; wide operating temperature
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/O: 2 serial ports, 4 x USB 3.2 Gen1 Type-A, 2 x Intel® Ethernet (1 x 1G, 1 x 2.5G)
• 12V single-voltage DC input; fanless metal enclosure

Product highlights
The Front IP65 design provides a waterproof, narrow-bezel front suited to wet and dusty applications such as factory automation, outdoor kiosks and process-control stations. Surface options include resistive touch or protection glass (no-touch). Rear O-ring bezel sealing and common video interfaces enable straightforward integration and reliable operation when properly installed.

Certifications
CE, FCC

Technical specifications

• Display: 15.0 inches; Resolution: 1024 x 768; Active area: 304.1 x 228.1 mm; Brightness: 500 nits; Contrast: 2500:1; View angles: 88/88/88/88
• Touch / Glass: Resistive touch (optional); Protection glass (no-touch, optional)
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz); i5-1145G7E available
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" drive (optional); 1 x M.2 2280 M-Key (NVMe)
• Ethernet: 1 x 1G RJ45, 1 x 2.5G RJ45
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise 64-bit (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional, Wake on Touch not supported)
• WLAN / Bluetooth: optional via M.2 2230 E-Key
• USB: 4 x USB 3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video outputs: 1 x DP 1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators & controls: Power LED, Storage LED; Power and Reset buttons; Brightness knob
• Power: 1 x 12V DC Din4-pin input; adapter 12V 120W (accessory)
• Mechanical: Dimension 400 x 320 x 70 mm; Cut-out 360 x 274 mm; Weight 4.2 kg; Panel mount (default); VESA mount optional; Metal housing; Fanless
• Environment: Operating humidity 30%–90% RH non-condensing; Operating temperature -20°C to 60°C; Storage -30°C to 70°C; Front IP65
• Certifications: CE, FCC; Accessories: 100–240V AC to DC adapter, power cord, VESA screws, mounting clips
