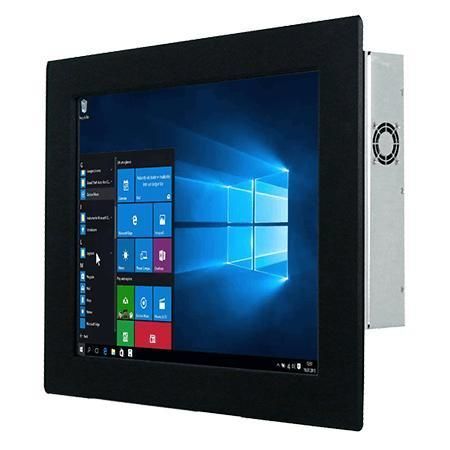

Resistive touch screen panel PC R15IF7T-IPC3

15"Intel® Core i3Intel® Core i5

Overview
Winmate R15IF7T-IPC3 is a 15-inch Front IP65 Panel PC powered by Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) processors. Designed for machine control, factory automation and operator HMI, it provides a front IP65-rated bezel for protection in wet and dusty environments, flexible storage options and multiple industrial I/O. Suitable for embedded and mission-critical environments requiring performance and long lifecycle availability.

Key Features

• 15" 1024 x 768 front IP65 Panel PC; optional resistive touch or protection glass
• Intel® 9th Gen Core™ i3 / i5 / i7 (Coffee Lake Refresh)
• Flexible storage: 1 x 2.5" HDD bay and M.2 NVMe/SATA support; optional SSD capacities
• Multiple I/O: 2 x serial ports, 4 x USB 3.2 Gen1 Type-A, 2 x Gigabit LAN
• 12 V DC lockable Din4 power input; DisplayPort and optional HDMI outputs

Product Details & Highlights

• Front IP65 waterproof design: front bezel rated IP65 for water and dust resistance; rear O-ring sealing for panel integration.
• Touch and surface options: optional resistive touchscreen or protection glass (no touch) to match deployment needs.
• Rich connectivity: DP/HDMI/VGA support, dual Intel Gigabit Ethernet, multiple USB and serial ports for industrial integration.
• Easy installation: panel-mount standard with optional VESA; compact metal enclosure and fan cooling for continuous operation.
• Outdoor kiosk suitability: when properly installed, designed to tolerate water, humidity, sunlight and airborne particles.

Certifications

• CE
• FCC

Technical Specifications

• Display Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88/88/88/88
• Active Area: 304.1 x 228.1 mm
• Processor: Intel Core i7-9700TE 1.8GHz (up to 3.8GHz) (Default); Intel Core i5-9500TE 2.2GHz (Optional); Intel Core i3-9100TE 2.2GHz (Optional)
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB; 2 x SATA III for 2.5" SSD/HDD (RAID 0,1 optional); 1 x M.2 2280/2242 M-Key (NVMe/SATA)
• Expandable: 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 3.0 (x16)
• Ethernet: 2 x Intel® Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise (64-bit) (Optional); Linux Ubuntu 20.04 (Optional)
• WLAN / Bluetooth: Optional
• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (Default RS232); 1 x RS232
• Video: 1 x DP1.2 (Default); 1 x HDMI 1.4 (Optional)
• Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• Indicators: 1 x LED power; 1 x LED storage
• Brightness Control: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC (Din4 pin connector) – Lockable power jack; Adapter: 12V 120W (accessory)
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
• Mechanical Dimensions: 400 x 320 x 70 mm; Cut out: 359 x 273 mm; Weight: 4.2 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal housing; Cooling System: Fan design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Control Buttons: 1 x Power Button; 1 x Reset Button
• Additional Display Support: DP up to 4096 x 2304 @ 60 Hz; HDMI up to 4096 x 2304 @ 24 Hz
