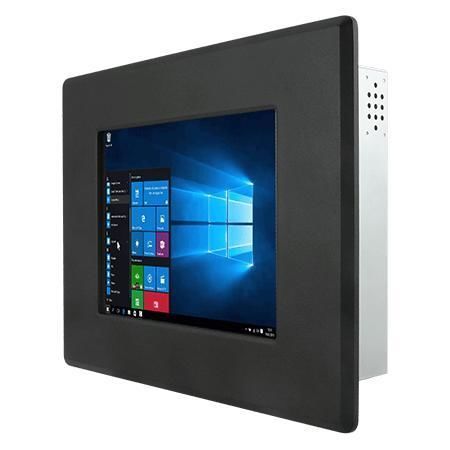

Resistive touch screen panel PC R08IE3S-IPU1

TFT LCD8.4"Intel® Celeron® N6211

Overview
Winmate R08IE3S-IPU1 is an 8.4-inch Front IP65 Panel PC powered by Intel® Celeron® Elkhart Lake N6211, engineered for machine control, factory automation and operator HMI. The unit features a waterproof front (Front IP65), narrow bezel and selectable resistive touch or protection glass for wet and dusty environments.

Key features

• 8.4-inch TFT SVGA (800×600) LCD, 600 nits brightness
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16GB DDR4
• 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• Expandable storage: SATA III, M.2 slots; multiple I/O: COM, USB 3.2 Gen2, USB 2.0
• Front IP65 rating for wet/dusty installations

Product highlights
Front IP65 waterproof design with rubber O-ring sealing on the bezel for reliable protection in industrial and kiosk applications. Touch surface options include resistive touchscreen (optional) or protection glass without touch. Supports VGA and HDMI video interfaces for flexible integration. Panel-mount default; optional VESA mount and fanless metal housing simplify system integration.

Certifications
CE and FCC certified.

Accessories & Power
Included/available accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips. Power input: 1 x 12V DC (2.5φ DC jack). Adapter: 12V 50W.

Use cases
Designed for machine control, factory automation and operator HMI in industrial or embedded systems where a front IP65 rating, reliable networking (2.5G LAN) and long lifecycle hardware are required.

Technical specifications

• Display: 8.4 inches; 800×600 SVGA; 600 nits; contrast 600:1; view angles 75/75/60/70; active area 170.4×127.8 mm
• Touch/Glass: Resistive touch (optional) or protection glass (optional)
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4GB default; options 8GB/16GB; 1 x SO-DIMM, max 16GB DDR4
• Storage: 128GB SSD default; options up to 2TB; 1 x SATA III (2.5") and M.2 slots
• Ethernet: 2 x Intel® controllers (2 x 2.5G LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11/10 IoT Enterprise, Windows 11 Pro, Ubuntu 22.04
• WLAN/BT: Optional via M.2 2230 E-Key
• IO: 2 x USB 3.2 Gen2 Type-A; 4 x USB 2.0; RS232/422/485; HDMI 2.0 (optional); VGA; 2 x speaker; LEDs; brightness knob
• Mechanical: 275×216×62 mm; cut-out 237×177 mm; weight 1.9 kg; metal enclosure; fanless
• Environment: Operating 0°C to 50°C; humidity 10%–90% RH non-condensing; front IP65
• Power: 12V DC input; adapter 12V 50W
• Certifications: CE, FCC
