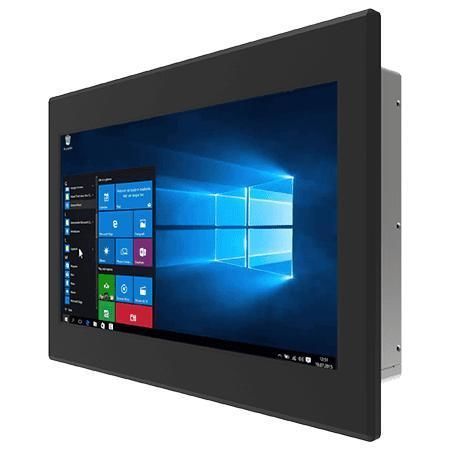

Resistive touch screen panel PC W15IAD3S-IPA2

15.6"Intel® Core i5-1235U1366 x 768

Summary
Winmate W15IAD3S-IPA2 is a 15.6-inch Front IP65 Panel PC powered by Intel® Core™ i5-1235U, designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators who need sealed front-panel hardware with multiple I/Os and long life-cycle support.

Key Features

• 15.6-inch 1366 x 768 Front IP65 display
• 12th Gen Intel® Core™ i5-1235U processor
• 1 x SODIMM DDR5 4800MHz, up to 32GB
• Integrated dual 2.5 Gigabit Ethernet ports
• Multiple I/Os: 2 x USB 3.2 Gen2x1, serial ports, VGA, HDMI (optional)
• Fanless metal housing; 12V DC input

Product Highlights

• Front IP65 sealing with rubber O-ring on bezel for panel-mount installations
• Touch options: resistive touch or protection glass without touch
• Flexible video interfaces for integration with embedded boards (VGA, optional HDMI 2.0)
• Panel-mount by default; VESA mount available as option
• Designed for wet, dusty or outdoor kiosk environments when installed in a suitable enclosure

Applications

• Machine control panels
• Factory automation HMI
• Operator workstations
• Outdoor kiosks and wet/dusty installations (parking, gas stations, pools)

Certifications

• CE
• FCC

Technical specifications

• Model: W15IAD3S-IPA2
• Display: 15.6-inch, 1366 x 768, 400 nits, 500:1 contrast
• Touch/Glass: Resistive touch (optional) or protection glass (optional)
• CPU: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 1 x SODIMM DDR5 4800MHz (8GB default; up to 32GB)
• Storage: 128GB SSD default; M.2 2280 NVMe slot; SATA III for 2.5" drive (optional)
• Ethernet: 2 x 2.5 Gbps RJ45
• I/O: 2 x USB 3.2 Gen2x1, serial ports (RS232/422/485), HDMI optional, VGA supported
• Expansion: M.2 2280 M-Key, M.2 2230 E-Key
• Power: 12V DC, adapter 12V 120W (accessory)
• Dimensions / Cut-out / Weight: 400 x 280 x 74.5 mm / 368.3 x 232 mm / 3.9 kg
• Operating range: 0°C to 50°C; humidity 10%–90% RH (non-condensing)
• Front protection: IP65
