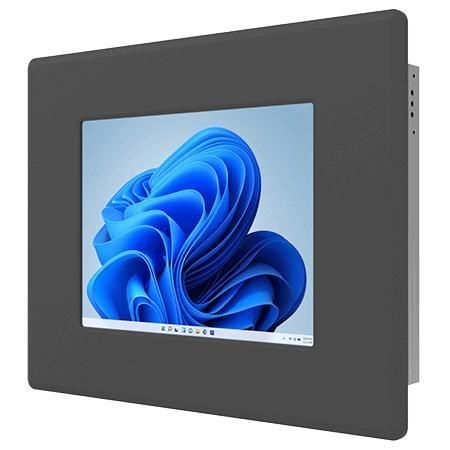

Resistive touch screen panel PC R08IAN3S-IPT1WT

TFT LCD8.4"Intel® Processor N100

AI Summary
Winmate R08IAN3S-IPT1WT is an 8.4-inch Front IP65 Panel PC designed for machine control, factory automation and operator HMI. It combines Intel® Twin Lake processors, an SVGA industrial display and versatile I/O to support reliable field operation across a wide temperature range.

Key Features

• 8.4-inch SVGA TFT LCD (800 x 600), 450 nits
• Intel® Twin Lake N150 (optional) / Intel® N100 (default)
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• Dual Intel® 2.5 Gigabit Ethernet
• Front IP65 protection, wide operating temperature (-20°C to 60°C)
• Multiple I/O: HDMI (optional), USB 3.2 Gen2 Type-C (DP Alt), USB Type-A, USB 2.0, COM ports

Overview
Compact and industrial-grade, the R08IAN3S-IPT1WT delivers stable computing and UHD-capable graphics for automation and monitoring tasks. Its fanless metal enclosure and front IP65 protection make it suitable for embedded and industrial installations.

Display & Touch

• 8.4" SVGA TFT for clear industrial visuals
• Options: resistive touch or protection glass without touch

Connectivity & I/O

• 2 x 2.5 Gigabit LAN (Intel®)
• 1 x USB 3.2 Gen2 Type-C (DP Alt mode), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
• Serial ports: configurable RS232/422/485
• Optional HDMI 2.0b, 2 x speakers, M.2 2230 E-Key for Wi‑Fi

Certifications

• CE
• FCC

Technical specifications

• Model: R08IAN3S-IPT1WT
• Processor: Intel® N100 (default) up to 3.40 GHz; Intel® N150 (optional) up to 3.60 GHz
• Memory: 4 GB default (options 8/16 GB), 1 x SO-DIMM DDR5-4800, max 16 GB
• Storage: 128 GB SSD default; options up to 4 TB; 1 x SATA III for 2.5" drive (when no NVMe)
• Display: 800 x 600, brightness 450 nits, contrast 600:1, active area 170.4 x 127.8 mm
• Mechanical: 275 x 216 x 62 mm; cut out 237 x 177 mm; weight 1.9 kg; metal housing; fanless
• Environment: Operating humidity 30%–90% RH non-condensing; operating temperature -20°C to 60°C; storage -30°C to 70°C; Front IP65
• Security: TPM 2.0
• Power: 12V DC input (2.5φ), adapter 12V 50W
