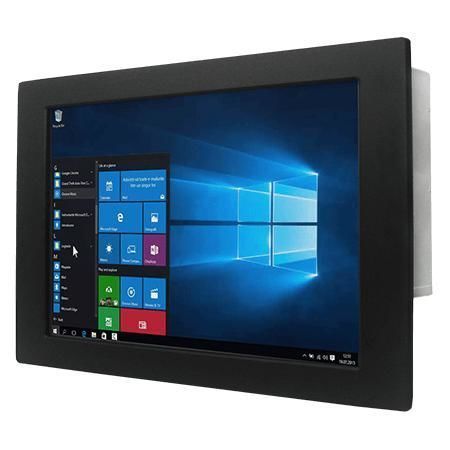

Resistive touch screen panel PC W18IP7T-IPA2

widescreenLCD18.5"

Overview
Winmate W18IP7T-IPA2 is an 18.5-inch Front IP65 Panel PC designed for machine control, factory automation and operator HMI. The model is offered with processor references shown as Intel® Pentium® N4200 (Apollo Lake) for detailed specifications; some marketing areas also reference Intel® Celeron® N2930. The Front IP65 Series provides a waterproof front bezel, narrow bezel design and multiple mounting options for industrial and kiosk applications.

Key features

• Processor: Intel® Pentium® N4200 (Apollo Lake) 1.10 GHz (up to 2.5 GHz)
• Marketing/subname reference: Intel® Celeron® N2930 (appears in some product areas)
• Flexible storage: 1 x 2.5" HDD socket and SSD options; M.2 2242 B-key slot
• Multiple I/O: 2 x serial ports, 4 x USB 3.0 (USB 3.2 Gen1) Type-A
• 12 V DC power input (DIN4 pin)
• Display outputs: DP1.2 (4096 x 2160 @ 60 Hz), optional HDMI 1.4 (3840 x 2160 @ 30 Hz), optional VGA

Product highlights & usage
The front IP65 design protects against water and dust on the front bezel when correctly installed in a panel or enclosure. Suitable applications include factory automation, outdoor kiosks, pool & SPA kiosks and other wet/dusty environments. Touch options include resistive touch or protection glass without touch. The metal housing and fanless design support embedded integration in cabinets, racks and outdoor terminals.

Certifications

• CE
• FCC

Technical specifications

• Display Size: 18.5 inches; Resolution: 1366 x 768; Brightness: 450 nits; Contrast: 1000:1; View angles: 85/85/80/80; Active area: 409.8 x 230.4 mm
• Touch / Glass: Resistive touch screen (optional); protection glass without touch (optional)
• Processor: Intel® Pentium® N4200 1.1 GHz (up to 2.5 GHz) [specification]; product subtitle/marketing may reference Intel® Celeron® N2930
• Memory: Dual-channel (non-ECC) SO-DIMM, up to 16 GB
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB; 2 x SATA III for 2.5" SSD/HDD (optional); M.2 2242 B-key (SATA III)
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options shown
• WLAN / Bluetooth: optional via M.2 2230 E-key
• Mechanical: 520 x 340 x 70 mm; Cut-out: 462 x 285 mm; Weight: ~5.3 kg; Panel mount (default); VESA mount optional; Metal housing; Fanless
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temp 0°C to 50°C; Storage temp -10°C to 60°C
• IP rating: Front IP65
• I/O Ports: 4 x USB3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x Gigabit RJ45; Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional), 1 x VGA (optional)
• Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• Expansion: 1 x M.2 2242 B-key (SSD); 1 x M.2 2230 E-key (Wi‑Fi); 1 x PCIe 2.0 x1 (optional)
• Indicators & Controls: LED power; LED storage; Brightness adjustment knob; Power button; Reset button
• Power: 1 x 12 V DC (DIN4 pin); example adapter 12V 84W; accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
