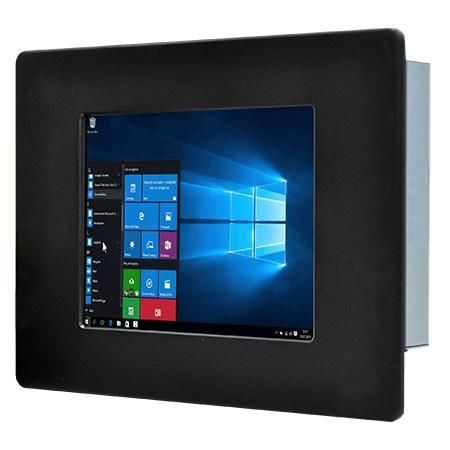

Resistive touch screen panel PC R06IE3S-IPA1

TFT LCD6.5"Intel® Celeron® N6211

Overview
Winmate R06IE3S-IPA1 is a 6.5-inch Front IP65 Panel PC powered by Intel® Celeron® Elkhart Lake N6211, designed for machine control, factory automation and operator HMI. The compact, field-ready unit targets industrial buyers, OEMs and system integrators requiring a sealed front panel and long lifecycle availability.

Key product highlights

• 6.5-inch TFT SVGA (640 x 480) display, 700 nits brightness
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4 (default 4 GB)
• 2 x Intel® Ethernet controllers (2 x 2.5 Gbps)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB; 1 x SATA III for 2.5-inch SSD/HDD
• I/O: 2 x USB 3.2 Gen2 Type-A, 4 x USB 2.0, up to 4 x COM, HDMI/VGA optional
• Front IP65 protection, metal housing, fanless design

Waterproof Front IP65 Design
The front IP65 series is engineered for wet and dusty environments; the sealed front bezel and rubber O-ring sealing prevent ingress while keeping a narrow bezel for panel integration in machines, cabinets and kiosks.

Touch and display options
Available with resistive touch screen (optional) or protection glass without touch (optional) to match operator requirements and different installation scenarios.

Interfaces and integration
Supports VGA and optional HDMI for video output and offers multiple industrial I/O for integration with embedded controllers, I/O modules and PLC systems. Expansion via M.2 2230 E-Key slot for Wi‑Fi module is supported.

Mechanical & installation
Panel mount is standard with a sealed front bezel; VESA mounting is optional. Dimensions, cut-out size and mounting clips simplify integration into control cabinets and kiosks.

Suitable applications
Intended for machine control, factory automation operator HMI, outdoor kiosks and other industrial applications that require reliable front-side protection and dependable field operation.

Certifications
CE and FCC certified.

Technical specifications

• Display: 6.5-inch SVGA 640 x 480, 700 nits, contrast 600:1, view angles 80/80/70/70
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; 8/16 GB optional; 1 x SO-DIMM, max. 16 GB DDR4
• Storage: 128 GB SSD default; optional to 2 TB; 1 x SATA III for 2.5-inch drive
• Ethernet: 2 x Intel® Ethernet controllers (2 x 2.5 Gbps RJ45)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit / Windows 11 Pro 64-bit / Windows 10 IoT Enterprise 64-bit / Linux Ubuntu 22.04
• Wireless: optional WLAN / Bluetooth via M.2 2230 E-Key slot
• I/O: 2 x USB 3.2 Gen2 Type-A; 4 x USB 2.0; serial ports (configurable RS232/422/485); HDMI 2.0b optional; VGA supported
• Audio: 2 x speakers
• Power: 1 x 12V DC (2.5φ DC jack); adapter 12V 50W
• Dimensions: 218 x 164 x 55.6 mm; Cut out: 192 x 144 mm; Weight: 1.4 kg
• Mounting: Panel mount default; VESA optional
• Enclosure: metal; Cooling: fanless
• Operating humidity: 10% to 90% RH non-condensing; Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• Front IP rating: IP65
