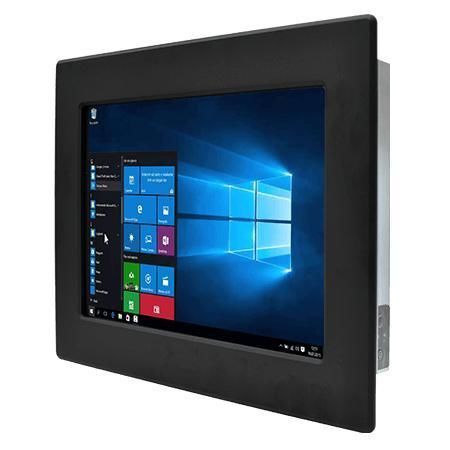

Resistive touch screen panel PC R12IE3S-IPM2WT

TFT LCD12.1"Intel® Celeron® N6211

Overview
R12IE3S-IPM2WT is a 12.1-inch wide-temperature panel PC with Intel® Celeron® N6211 and front IP65 protection. It is designed for machine control, factory automation and operator HMI applications in embedded, industrial or outdoor kiosks where sealed front access, multiple I/O and long lifecycle availability are required.

Key Features

• 12.1" TFT LCD wide-temperature panel
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4 (default 4 GB)
• 2 x Ethernet (2 x 2.5 Giga LAN RJ45 in I/O spec)
• Support for SATA III, multiple COM ports, USB 3.2 and USB 2.0
• Front IP65 waterproof/dustproof rating

Product Details

• Front IP65 design: Sealed front bezel with rear O-ring to prevent ingress of water and dust; suitable for wet, dusty or outdoor applications when installed in appropriate enclosures.
• Display and touch options: 12.1" 1024×768 panel with 500 nits brightness; available with resistive touchscreen (optional) or protection glass without touch.
• Interfaces: VGA and optional HDMI 2.0 for video; multiple USB, serial and Ethernet ports for integration with industrial controllers and embedded boards.
• Installation and mounting: Panel-mount standard; VESA mount optional; compact bezel and rubber seal enable straightforward cabinet or kiosk integration.
• Operational range: Wide operating temperature (-20°C to 60°C) and fanless design suited for continuous industrial operation.

Specifications

• Display Size: 12.1 inches
• Resolution: 1024 x 768
• Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Active Area: 245.76 x 184.32 mm
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without Touch (Optional)
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (Default); optional 8 GB or 16 GB; 1 x SO-DIMM, max. 16 GB DDR4
• Storage: 128 GB SSD (Default); options 256 GB, 512 GB, 1 TB, 2 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Serial Ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• USB: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
• Video: 1 x HDMI 2.0 (Optional); VGA available
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2242 B-Key (for SATA III SSD); 1 x M.2 2230 E-Key (for Wi‑Fi module)
• Indicators: 1 x LED for power; 1 x LED for storage
• Brightness Knob: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, 2.5φ DC jack
• Power Rating / Adapter: 12V DC; Adapter 12V 50W
• Buttons: 1 x Power Button; 1 x Reset Button
• Security: TPM 2.0
• Operating Systems (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
• WLAN / Bluetooth: Optional support via M.2 2230 E-Key
• Mechanical Dimensions: 324 x 274 x 57 mm
• Cut-out: 303 x 234.5 mm
• Weight: 2.6 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal Housing
• Cooling: Fanless Design
• Operating Humidity: 30% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• IP Rating: Front IP65
• Certifications: CE, FCC
• Accessories: 100~240V AC to DC Adapter; Power Cord; VESA screws; Mounting clips
