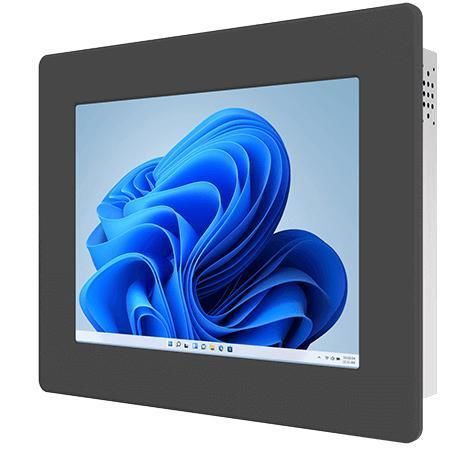

Resistive touch screen panel PC R10IAN3S-IPT2

TFT LCD10.4"Intel® Processor N100

Overview
Winmate R10IAN3S-IPT2 is a 10.4” front IP65 industrial panel PC powered by Intel® Twin Lake N150 (optional Intel® N100). Designed for machine control, factory automation and operator HMI, it provides dependable computing, integrated UHD graphics, extensive I/O and long product lifecycle for industrial applications.

Key features

• 10.4” XGA TFT LCD (1024 x 768), 500 nits
• Intel® Twin Lake N150 (optional N100)
• SO-DIMM DDR5-4800 memory support, up to 16GB
• Dual Intel® 2.5 Gigabit Ethernet controllers
• Multiple I/O: HDMI (optional), USB 3.2 Type-C with DP-Alt, USB 3.2 Gen1 Type-A, USB 2.0, multiple COM ports
• Front IP65 protection; panel mount (default) and VESA mount (optional)
• Fanless metal housing for reliable field operation

Certifications
CE, FCC

Product highlights / Additional info
Supports NVMe and optional 2.5" SATA storage, TPM 2.0, optional WLAN/BT via M.2 2230 E-Key, and multiple OS options including Windows 11 IoT Enterprise, Windows 11 Pro and Linux Ubuntu 24.04 (Ubuntu does not support Wake on Touch). Front bezel meets IP65 rating for dust and water ingress protection, facilitating integration in industrial enclosures and control panels.

Technical specifications

• Display — 10.4 inches, 1024 x 768 (XGA); brightness 500 nits; contrast 1000:1; active area 210.4 x 157.8 mm; resistive touch (optional) or protection glass (optional)
• System — Processor: Intel® Processor N100 (default) / Intel® Processor N150 (optional)
• Memory — 1 x SO-DIMM DDR5-4800, 4GB default; options up to 16GB
• Storage — 128GB SSD default; optional 256GB–4TB; 1 x SATA III for 2.5" SSD/HDD (available if NVMe absent)
• Ethernet — 2 x Intel® 2.5 Gigabit Ethernet (RJ45)
• Security — TPM 2.0
• OS — Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 24.04 (no Wake on Touch)
• WLAN/BT — Optional via M.2 2230 E-Key slot
• Mechanical — Dimensions 284 x 234 x 55 mm; cut-out 262 x 199 mm; weight 2.4 kg; panel mount (default) / VESA optional; metal enclosure; fanless
• Environment — Operating humidity 10%–90% RH non-condensing; operating temperature 0°C–50°C; storage -10°C–60°C; front IP65
• I/O — 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (DP Alt mode); serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; 2 x 2.5G LAN; 1 x HDMI 2.0b (optional); audio: 2 x speaker; indicators and brightness knob
• Power — 1 x 12V DC input (2.5φ DC jack); adapter 12V 50W
• Accessories — 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
