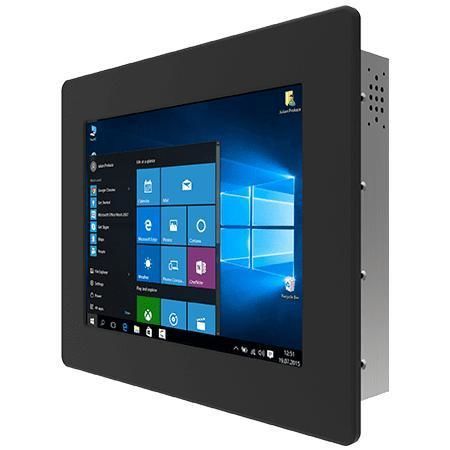

Resistive touch screen panel PC R10IT3S-IPT2

TFT LCD10.4"Intel® Core™ i5-1135G7

Overview
Winmate R10IT3S-IPT2 is a 10.4-inch Front IP65 panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). It is designed for machine control, factory automation and operator HMI in rugged or mission-critical environments, offering fanless cooling, long lifecycle availability and industrial-grade connectivity.

Key features

• 10.4-inch TFT XGA (1024 x 768), 500 nits
• Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Fanless design and low power
• Front IP65 protection
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual 2.5 Giga Ethernet (2 x Intel® controllers)
• M.2 slots: M.2 2242 SATA III and optional M.2 2280 NVMe

Waterproof front IP65 design
Front IP65 sealing protects against dust and water jets when the unit is correctly installed in a panel or enclosure. Suitable for wet or dusty industrial areas, outdoor kiosks and pool/SPA kiosk applications.

Intuitive operations with the touchscreen
Available with resistive touchscreen (optional) or protective glass without touch, so surface configuration can be adapted to the application environment and operator needs.

HDMI and VGA signal interfaces
Supports VGA and optional HDMI 2.0 to simplify integration with embedded boards and external displays used in industrial systems.

Easy installation
Rear O-ring on the front bezel provides sealing between bezel and customer fixture to prevent ingress of water and dust. Designed for straightforward panel or cabinet mounting; accessories include mounting clips and VESA screws.

Suitable for outdoor kiosk applications
When embedded in a suitable enclosure and installed correctly, the panel PC withstands outdoor conditions — moisture, sunlight and airborne particles — making it suitable for parking, gas station and other outdoor kiosks.

Certifications

• CE
• FCC

Technical specifications

• Display: 10.4-inch TFT XGA (1024 x 768), 500 nits, 1000:1
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; options up to 32 GB (1 x SO-DIMM DDR4 3200 MHz)
• Storage: 128 GB SSD default; optional 256/512 GB /1 TB /2 TB /4 TB; 1 x SATA III for 2.5-inch up to 2 TB; M.2 NVMe optional
• Ethernet: 2 x 2.5 Giga LAN RJ45 (Intel®)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04
• IO: 2 x USB 3.2 Gen2 Type-A, RS232/422/485, HDMI (optional), VGA, audio speakers
• Power: 12 V DC input; adapter 12 V 120 W
• Mechanical: 284 x 234 x 56 mm; cut-out 262 x 203 mm; weight 2.4 kg; metal housing
• Environment: Operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH (non-condensing)
• IP rating: Front IP65
