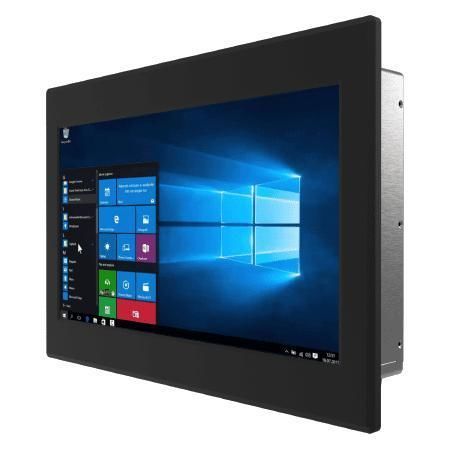

Resistive touch screen panel PC W15IT7T-IPA2

15.6"Intel® Core i51366 x 768

Summary
W15IT7T-IPA2 is a 15.6" Front IP65 Panel PC with Intel® Core™ i5 (Tiger Lake) designed for machine control, factory automation and operator HMI. It combines a narrow-bezel 15.6" 1366 x 768 display, Tiger Lake UP3 i5 processor options, extensive I/O and a front-side IP65 rating for wet and dusty environments.

Key Features

• 15.6" display, 1366 x 768, 400 nits, 500:1 contrast
• Intel® Core™ Tiger Lake UP3 i5-1135G7 / i5-1145G7E (vPro option)
• Multi-display: DP / HDMI / LVDS / eDP
• Multiple I/Os: serial ports, 4 x USB 3.2 Gen1 (Type-A), Gigabit + 2.5G LAN
• 12V single-voltage DC input; front IP65 protection

Overview
The Front IP65 series is engineered for humid, wet and dusty applications. The front bezel achieves IP65 sealing while retaining a compact, narrow bezel profile suitable for factory automation, outdoor kiosks, pool and SPA kiosks and other demanding locations.

Installation & Integration
The front bezel includes a rear rubber O-ring for sealing to the customer fixture. Panel-mount is standard with optional VESA mounting. Standard video interfaces (DP/HDMI/VGA) and multiple I/O options simplify integration into embedded systems and cabinets.

Recommended applications
Machine control, operator HMI, factory automation, outdoor kiosks, parking and fuel-station terminals, pool and SPA kiosks, OEM embedded systems.

Certifications

• CE
• FCC

Caractéristiques / spécifications techniques

• Model: W15IT7T-IPA2
• Display — Size: 15.6"; Resolution: 1366 x 768; Brightness: 400 nits; Contrast: 500:1; View angles: 85/85/80/80; Active area: 344.232 x 195.536 mm
• Display — Touch/Glass: Resistive touch (optional); Protection glass without touch (optional)
• System — CPU: Intel Core i5-1135G7 (2.4GHz up to 4.2GHz) / i5-1145G7E (with vPro)
• System — Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• System — Storage: 128GB SSD (default); options 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45; 2 x Intel® Ethernet Controllers
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: optional (M.2 2230 E-Key slot)
• IO — USB: 4 x USB 3.2 Gen2x1 (Type-A)
• IO — Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• IO — Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional); VGA support
• IO — Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators / Controls: LED power, LED storage, Brightness adjustment knob, Power and Reset buttons
• Mechanical: Metal housing; Dimensions 400 x 280 x 75.5 mm; Cut out 368.3 x 232 mm; Weight 3.9 kg; Panel mount (default), VESA optional
• Cooling: Fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C to 50°C; Storage temp -10°C to 60°C; Front IP65
• Power: 1 x 12V DC DIN4 pin connector; Adapter 12V 120W (included/optional)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
