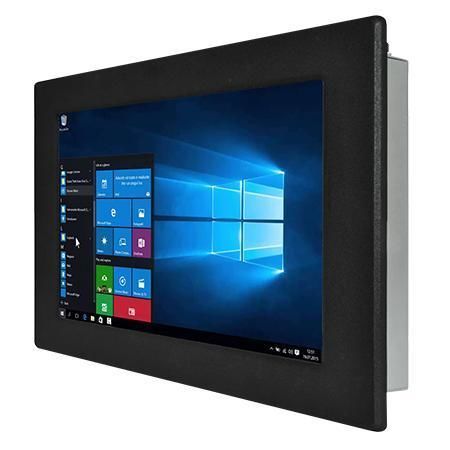

Resistive touch screen panel PC W10IE3S-IPH2

TFT LCD10.1"Intel® Celeron® N6211

Overview
Winmate W10IE3S-IPH2 is a 10.1-inch Front IP65 industrial panel PC powered by Intel® Celeron® N6211 (Elkhart Lake). Designed for machine control, factory automation and operator HMI, it provides a waterproof front IP65 design, flexible touchscreen and glass options, multiple I/O and expansion for embedded and OEM applications.

Key Features

• 10.1 inch TFT LCD, 1280 x 800, 350 nits
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM up to 16 GB DDR4; default 4 GB
• 2 x 2.5 Giga LAN RJ45 (Intel® Ethernet Controller)
• Storage options: 128 GB SSD default; 256/512 GB/1 TB/2 TB; M.2 and SATA expansion
• Multiple I/O: 2 x USB 3.2 Gen2x1, 4 x USB 2.0, up to 4 x COM, HDMI/VGA

Waterproof Front IP65 Design
Front IP65 sealing protects against dust and water ingress from the front, suitable for wet or dusty industrial environments and correctly integrated outdoor kiosks.

Touch and Display Options
Available with resistive touch or protection glass without touch. Display supports wide viewing angles and 800:1 contrast.

Interfaces and Integration
Provides HDMI and VGA outputs, dual Intel Ethernet controllers, TPM 2.0 and M.2 slots for Wi-Fi and storage to ease system integration.

Mechanical & Installation
Compact metal enclosure with rear O-ring sealing on the front bezel for panel mounting. Dimensions 286 x 182 x 50.5 mm; cut-out 252.5 x 162 mm; fanless design.

Certifications
CE, FCC.

Specifications

• Display: 10.1 inches; Resolution 1280 x 800; Brightness 350 nits; Contrast 800:1; View angles 85/85/85/85; Active area 216.96 x 135.6 mm; Touch: Resistive touch (optional) or protection glass without touch (optional)
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; options 8 GB, 16 GB; 1 x SO-DIMM, max 16 GB DDR4
• Storage: 128 GB SSD default; options 256/512 GB/1 TB/2 TB; 1 x M.2 2242 B-Key (SATA III); 1 x SATA III for 2.5 inch SSD/HDD (optional)
• Ethernet: 2 x 2.5 Giga LAN RJ45 (Intel® controllers)
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04
• Wireless: Optional WLAN/Bluetooth via M.2 2230 E-Key
• I/O Ports: 2 x USB 3.2 Gen2x1 (Type-A), 4 x USB 2.0, serial ports (configurable), HDMI 2.0 optional, VGA, audio 2 x speaker, LEDs, brightness knob, power input 12V DC (2.5φ jack)
• Expansion: M.2 2242 B-Key and M.2 2230 E-Key slots
• Mechanical: Dimension 286 x 182 x 50.5 mm; Cut out 252.5 x 162 mm; Weight 1.7 kg; Panel mount default; VESA optional; Metal housing; Fanless
• Environment: Operating humidity 10% to 90% RH non-condensing; Operating temperature 0°C to 50°C; Storage -10°C to 60°C; Front IP65
• Certification: CE, FCC
