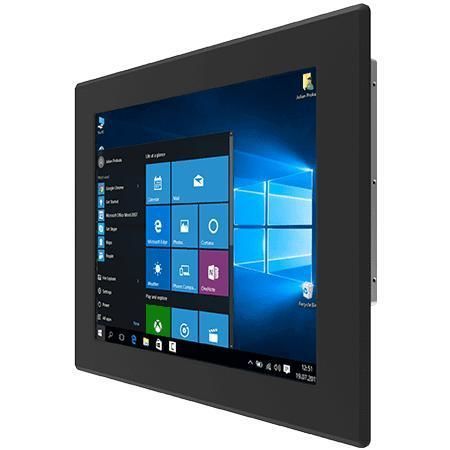

Resistive touch screen panel PC R17IT3S-IPM1

17"Intel® Core™ i5-1135G71280 x 1024

Overview
Winmate R17IT3S-IPM1 is a 17-inch front IP65 panel PC designed for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 processor, fanless cooling, flexible storage and memory options, and front-side IP65 protection for wet or dusty environments.

Key features

• 17.0-inch TFT XGA display (1280 x 1024), 350 nits
• Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Fanless design; 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Front IP65 protection; metal enclosure
• Dual Intel Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• M.2 expansion: M.2 Key M (2242/2280) for SSD; M.2 2230 E-Key for Wi‑Fi
• I/O: 2 x USB3.2 Gen2, VGA standard, HDMI 2.0 (optional), RS232/422/485

Product highlights
Front IP65 waterproof design: front-sealed bezel with a rear O-ring provides IP65 protection against water and dust when installed correctly, suitable for factory floors, outdoor kiosks and other industrial locations.

Touch and front-surface options: configurable with a resistive touch panel or protection glass (no touch) to match operator interface requirements.

Video and connectivity: standard VGA plus optional HDMI 2.0 and dual 2.5GbE LAN for high-speed networked applications; multiple expansion options for NVMe and wireless modules.

Installation and mounting: designed for panel-mount installation by default with optional VESA mounting; includes sealing features to ease cabinet or enclosure integration.

Technical specifications

• Model: R17IT3S-IPM1; Brand: Winmate
• Display: 17.0 inches, 1280 x 1024 (XGA), 350 nits, 1000:1 contrast
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; options 8/16/32 GB; 1 x SO-DIMM, DDR4 3200 MHz
• Storage: 128 GB SSD default; optional 256/512 GB/1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD (up to 2 TB)
• Ethernet: 2 x Intel® 2.5 Giga LAN RJ45
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; USB: 2 x USB3.2 Gen2 Type-A
• Video: VGA standard; HDMI 2.0 optional
• Audio: 2 x speakers; Indicators: power & storage LEDs; Brightness adjustment knob
• Power: 12V DC input (2.5φ DC jack); adapter 12V 120W (accessory)
• Mechanical: 440 x 360 x 80 mm; cut-out 394 x 314 mm; weight 5.9 kg; panel mount (default), VESA optional
• Environment: Operating 0°C to 50°C; 10%–90% RH non-condensing; Front IP65
• Security / OS: TPM 2.0; optional Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04
• Certifications: CE, FCC
