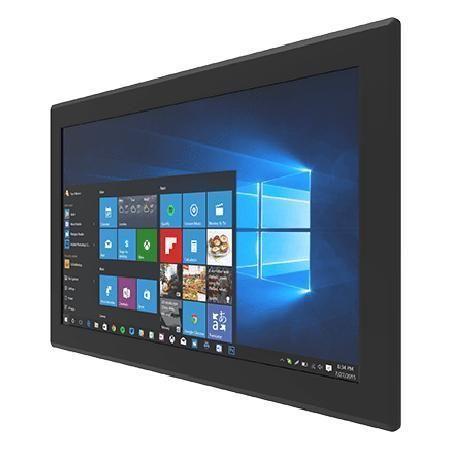

Resistive touch screen panel PC W24IT7T-IPA2

24"Intel® Core™ i5-1135G7Intel® Core™ i5-1135G7

Overview
Winmate W24IT7T-IPA2 is a 24-inch front IP65 industrial panel PC powered by Intel® Core™ Tiger Lake i5 processors. It is designed for machine control, factory automation and operator HMI in wet, dusty or mission-critical environments where front-side water and dust protection and long lifecycle availability are required.

Key features

• 24-inch 1920 x 1080 display
• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• Multi-display support: DP / HDMI / LVDS / eDP panel interfaces
• Multiple I/Os including serial ports and 4 x USB 3.2 Gen2x1 Type-A
• 2 x serial ports (configurable RS232/422/485)
• 12V single-voltage power input (Din4 pin connector)
• Front IP65 rating for water and dust protection

Product highlights

• Front IP65 waterproof design suitable for wet and dusty applications such as factory automation, outdoor kiosks and pool/SPA kiosks
• Optional resistive touchscreen or protection glass (cover glass without touch) to match operator requirements
• Standard video interfaces (DP, HDMI, VGA) for straightforward system integration
• Rear O-ring sealing on the front bezel for reliable front-side IP65 sealing
• Fanless design for robust, low-maintenance operation

Certifications

• CE
• FCC

Technical specifications

• Model: W24IT7T-IPA2
• Brand: Winmate
• Display Size: 24.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 527.04 x 296.46 mm
• Mechanical Dimension: 606 x 376 x 76 mm
• Cut out: 561 x 328 mm
• Weight: 8.7 kg
• Mounting: Open frame (Default); Panel mount (Optional); VESA mount (Optional)
• Enclosure: Metal housing
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• USB Port: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial Port: 1 x RS232/422/485 (Default RS232) and 1 x RS232
• LAN: 1 x Gigabit LAN (RJ45); 1 x 2.5 Gigabit LAN (RJ45)
• Video: 1 x DP1.4 (Default); 1 x HDMI 2.0 (Optional); VGA support
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (for NVMe SSD); 1 x M.2 2230 E-Key (for Wi‑Fi); 1 x PCIe 4.0 (x16) slot with x4 signal
• Indicator: 1 x LED for power; 1 x LED for storage
• Brightness Knob: 1 x brightness adjustment knob
• Power Input: 1 x 12V DC, Din4 pin connector
• Power Rating / Adapter: 12V DC; 12V 120W adapter (accessory)
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws
• Buttons: 1 x power button; 1 x reset button
