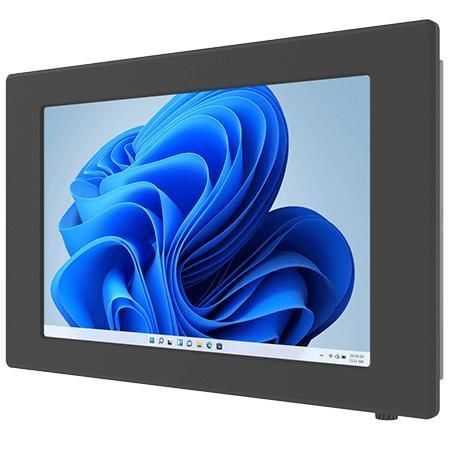

Resistive touch screen panel PC W10IAN3S-IPH2

TFT LCD10.1"Intel® Processor N150

Overview
The Winmate W10IAN3S-IPH2 is a 10.1-inch Front IP65 industrial panel PC designed for machine control, factory automation and operator HMI. It is built for reliable, long-lifecycle industrial use with a fanless metal enclosure and versatile I/O for seamless integration into automation systems.

AI Summary
Winmate W10IAN3S-IPH2 is a 10.1-inch Intel® Twin Lake N150 Front IP65 Panel PC designed for machine control, factory automation, and operator HMI. Best for industrial buyers, OEMs, and system integrators requiring stable hardware integration, dependable field operation and long lifecycle availability.

Key features

• 10.1” WXGA TFT LCD (1280 x 800)
• Intel® Twin Lake N150 (optional) or Intel® N100 (default) processors
• 1 x SO-DIMM DDR5-4800, up to 16GB
• 2 x 2.5 Gigabit Ethernet
• Supports 1 x HDMI, 1 x USB 3.2 Type-C (DP-Alt), 2 x USB 3.2 Gen2 Type-A, 4 x USB 2.0, 4 x COM
• Front IP65 protection for operator-side panel
• Supports panel mount (default) and optional VESA mount

Product highlights

• Display: WXGA TFT LCD with 350 nits brightness, 800:1 contrast ratio and 85/85/85/85 viewing angles
• Flexible storage: NVMe SSD options and optional 2.5" SATA bay (available only when NVMe not present)
• Security: TPM 2.0 supported
• Fanless design with metal housing for industrial reliability

Typical applications

• Machine control
• Factory automation
• Operator HMI and embedded industrial systems

Technical specifications

• Model: W10IAN3S-IPH2
• Display size: 10.1 inches
• Touch / Glass: Resistive touch screen (optional) or protection glass without touch (optional)
• Resolution: 1280 x 800 (WXGA)
• Panel brightness: 350 nits
• Contrast ratio: 800:1
• Active area: 216.96 x 135.6 mm
• Processor (default / optional): Intel® Processor N100 (6M Cache, up to 3.40 GHz) default; Intel® Processor N150 (6M Cache, up to 3.60 GHz) optional
• Memory: 4GB (default); optional 8GB or 16GB (1 x SO-DIMM DDR5-4800, max 16GB)
• Storage (default / optional): 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (only available when NVMe SSD is not present)
• Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet
• Wireless: WLAN / BT support optional via M.2 2230 E-Key slot (for Wi‑Fi module)
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 24.04 (note: does not support Wake on Touch)
• USB: 2 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen2 Type-C (DP Alt. mode), plus additional USB 2.0 ports listed in product options
• Serial ports: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video output: 1 x HDMI 2.0b (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• Indicators / controls: 1 x LED power indicator; 1 x LED storage indicator; 1 x brightness adjustment knob; 1 x power button; 1 x reset button
• Power input / adapter: 1 x 12V DC, 2.5φ DC jack; adapter 12V 50W; accessories include 100~240V AC to DC adapter, power cord
• Mechanical dimensions: 286 x 182 x 50.5 mm; cut-out: 252.5 x 162 mm; weight: 1.7 kg
• Mounting: Panel mount (default); VESA mount optional; mounting clips and VESA screws included as accessories
• Enclosure / cooling: Metal housing; fanless design
• Environmental: Operating humidity 10% to 90% RH (non-condensing); operating temperature 0°C to 50°C; storage temperature -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• Accessories: 100~240V AC to DC Adapter, power cord, VESA screws, mounting clips
