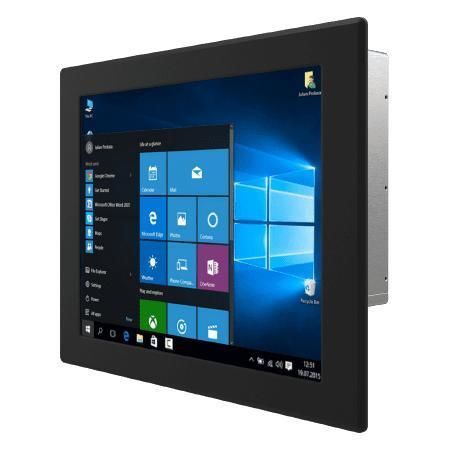

Resistive touch screen panel PC R19IT7T-IPA2WT

19"Intel® Core i5Intel® Tiger Lake-U

Overview
Winmate R19IT7T-IPA2WT is a 19-inch front IP65 industrial panel PC powered by Intel® Core™ i5 (Tiger Lake). Designed for machine control, factory automation and operator HMI, it delivers reliable operation in wet, dusty and harsh environments while offering flexible I/O and display interfaces for embedded and OEM integration.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (non-vPro) or i5-1145G7E (vPro)
• 1280 x 1024 resolution, 350 nits brightness
• Multi-display: DP / HDMI / LVDS / eDP panel interfaces
• Multiple I/O: serial ports, 4 x USB 3.2, Gigabit and 2.5G LAN
• 12 V DC single-voltage input, fanless metal housing
• Front IP65 — water and dust resistant for outdoor/industrial kiosks

Product highlights / Overview details
Waterproof Front IP65 Design
Front IP65-rated bezel protects against water and dust while maintaining a narrow bezel for integration into control panels, cabinets and kiosks.

Intuitive Operations with the Touchscreen
Available with resistive touchscreen or protection glass (no-touch) options to match operator requirements and environments.

HDMI, VGA and Multi-display Interfaces
Supports DP, HDMI and legacy VGA interfaces for straightforward connection to embedded boards and external displays; multi-output support simplifies system integration.

Easy Installation
Rear O-ring on the front bezel ensures sealing to customer fixtures, preventing ingress of water and dust. Designed for open-frame, panel or VESA-mounted installations.

Suitable for Outdoor Kiosk Applications
When correctly embedded and sealed, the front IP65 rating and rugged design allow reliable outdoor use in parking, fuel stations, pools, SPA kiosks and similar locations.

Specifications

• Model: R19IT7T-IPA2WT
• Brand: Winmate
• Display: 19.0 inches, 1280 x 1024, 350 nits, 1000:1 contrast
• Touch / Glass: Resistive touch (optional) or protection glass (optional)
• Processor: Intel® Core™ i5-1135G7 (up to 4.2 GHz); i5-1145G7E optional
• Memory: 2 x non-ECC SO-DIMM up to 64 GB
• Storage: 128 GB SSD default; optional up to 4 TB; 1 x SATA III for 2.5" drive
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x DP1.4 (default); HDMI 2.0 optional
• Expansion: M.2 2280 (NVMe), M.2 2230 (Wi‑Fi), PCIe 4.0 x16 (x4 signal)
• Power: 12V DC (Din4 pin), adapter 12V 120W
• Dimensions: 474 x 384 x 78 mm; cut-out 431 x 341 mm; weight 6.9 kg
• Operating: -20°C to 60°C; 30%–90% RH non-condensing
• IP rating: Front IP65; Certifications: CE, FCC
