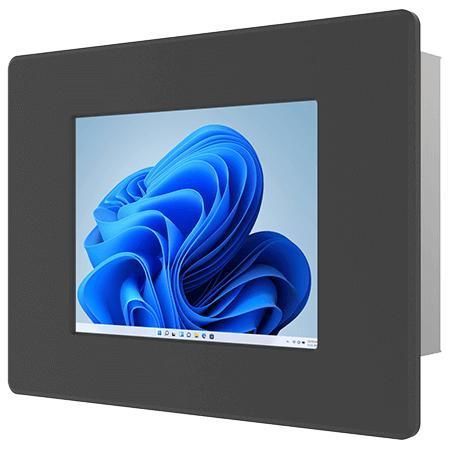

Resistive touch screen panel PC R06IAN3S-IPA1

TFT LCD6.5"Intel® Processor N150

Overview
The Winmate R06IAN3S-IPA1 is a 6.5-inch Front IP65 Panel PC designed for machine control, factory automation and operator HMI. Based on Intel® Twin Lake N100 (default) or N150 (optional) processors with integrated UHD graphics, it provides reliable embedded computing and industrial-grade I/O for OEMs and system integrators.

Product Highlights

• 6.5” SVGA TFT LCD (640 x 480), 700 nits
• Intel® Twin Lake N150 (optional) / N100 (default)
• 1 x SO-DIMM DDR5-4800 (up to 16GB)
• 2 x Intel® 2.5 Gigabit Ethernet (RJ45)
• Multiple I/O: USB3.2 Gen2 Type-C (DP-Alt), USB3.2 Gen1 Type-A, USB2.0, COM ports, HDMI (optional)
• Front IP65 protection; panel mount (default), VESA optional
• Fanless metal housing

Key benefits

• Compact industrial HMI suitable for machine control and monitoring tasks.
• Clear readability in tight spaces thanks to high-brightness SVGA display.
• Flexible connectivity and expansion for seamless integration into automation systems.
• Dual 2.5 GbE for higher-speed industrial communications.

Certifications

• CE
• FCC

Additional product notes
The unit is fanless with a metal enclosure designed for panel mounting. Accessories typically include a 12V 50W AC-to-DC adapter, power cord, VESA screws and mounting clips. Security support includes TPM 2.0. OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit) and Linux Ubuntu 24.04 (Ubuntu does not support Wake on Touch). Optional WLAN/BT via M.2 2230 E-Key module.

Technical specifications

• Display — Size: 6.5 inches; Resolution: 640 x 480; Brightness: 700 nits; Contrast: 600:1; View angles: 80/80/70/70; Active area: 132.48 x 99.36 mm
• Touch/Glass — Resistive touch (optional); Protection glass without touch (optional)
• Processor — Intel® N100 (default, up to 3.40 GHz); Intel® N150 (optional, up to 3.60 GHz)
• Memory — 4GB default; optional 8GB/16GB (1 x SO-DIMM DDR5-4800, max 16GB)
• Storage — 128GB SSD default; options to 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD (if NVMe absent)
• Ethernet — 2 x Intel® 2.5 Gigabit Ethernet
• USB — 2 x USB3.2 Gen1 Type-A; 1 x USB3.2 Gen2 Type-C (DP Alt mode); 4 x USB2.0
• Serial — 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video — 1 x HDMI 2.0b (optional)
• Audio — 2 x Speaker
• Expansion — 1 x M.2 2230 E-Key slot (Wi‑Fi module)
• Indicators — Power LED; Storage LED
• Power — Input: 1 x 12V DC (2.5φ DC jack); Adapter: 12V 50W
• Mechanical — Dimensions: 218 x 164 x 55.6 mm; Cut-out: 192 x 144 mm; Weight: 1.4 kg; Enclosure: Metal; Mounting: Panel (default), VESA (optional)
• Environment — Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IP Rating — Front IP65
