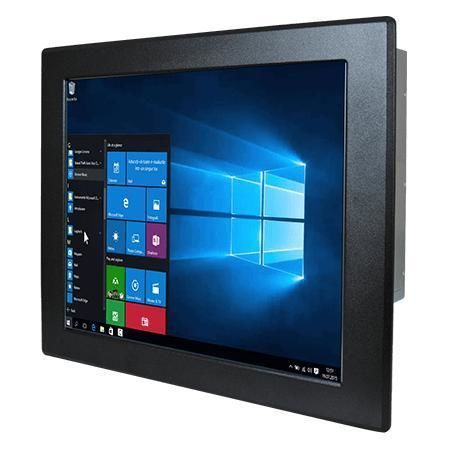

Resistive touch screen panel PC R19IP7T-IPA1

touch screenLCD19"

Overview
The R19IP7T-IPA1 is a 19-inch front IP65 panel PC featuring an Intel® Pentium® N4200 processor, designed for machine control, factory automation and operator HMI in wet or dusty industrial environments. The unit targets OEMs, system integrators and industrial buyers requiring a fanless, panel-mount HMI with long-term availability.

Key features

• Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz)
• 19.0-inch display, 1280 x 1024, 400 nits, 1000:1 contrast
• Flexible storage: 128 GB SSD default; optional 256/512 GB/1 TB; 2 x SATA III for 2.5" SSD/HDD; M.2 2242 B-key
• I/O: 4 x USB3.2 Gen1 Type-A, 2 x Giga LAN (Intel®), 2 x serial (configurable)
• Video: DP1.2 (default), HDMI 1.4 (optional), VGA (optional)
• Front protection: IP65; fanless metal enclosure; panel mount (VESA optional)

Design and application
Front IP65 rating provides protection against dust and water jets when correctly mounted in a front panel cut-out. The front bezel includes an O-ring seal for reliable sealing with customer fixtures. Available with resistive touch or protective glass (non-touch) to suit kiosk, outdoor kiosk, pool/SPA kiosk and factory-floor HMI installations.

Interfaces and expansion
The platform offers broad connectivity for industrial integration: dual Gigabit LAN, multiple USB 3.0 ports, configurable RS232/422/485 ports, audio, M.2 slots for SSD or Wi‑Fi module and an optional PCIe 2.0 x1 slot for additional peripherals.

Installation and maintenance
Panel-mount design with specified cut-out dimensions and rear O-ring simplifies sealing and installation in cabinets or enclosures. Fanless thermal design reduces maintenance; TPM 2.0 and optional OS images (Windows 10 IoT Enterprise, Linux) support secure embedded deployments.

Certifications

• CE
• FCC

Technical specifications (summary)

• Display: 19.0 inches; Resolution 1280 x 1024; Brightness 400 nits
• Processor: Intel® Pentium® N4200
• Memory: Dual-channel SO-DIMM up to 16 GB
• Storage: 128 GB SSD default; 2 x SATA III; 1 x M.2 2242 B-key
• LAN: 2 x Intel® Gigabit
• Serial: configurable RS232/422/485
• I/O: 4 x USB3.2 Gen1 Type-A; DP1.2; HDMI 1.4 (opt); VGA (opt)
• Power: 1 x 12V DC (Din4), adapter example 12V 84W
• Mechanical: 474 x 384 x 78 mm; Cut-out 431 x 341 mm; Weight 6.9 kg
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Operating humidity 10%–90% RH non-condensing
• Front IP rating: IP65
