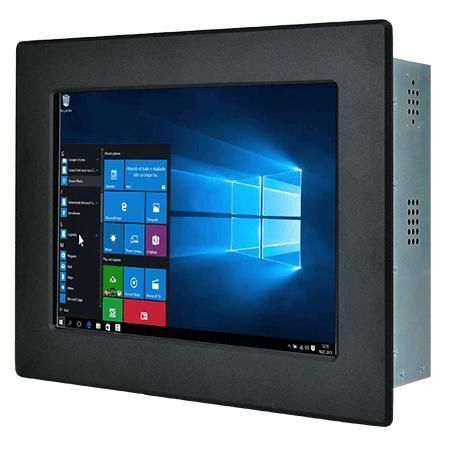

Resistive touch screen panel PC R08IE3S-IPT1WT

TFT LCD8.4"Intel® Celeron® N6211

Overview
Winmate R08IE3S-IPT1WT is an 8.4-inch Front IP65 wide-temperature Panel PC powered by Intel® Celeron® Elkhart Lake N6211. Engineered for machine control, factory automation and operator HMI, it features a fanless metal housing and a waterproof front (Front IP65) for wet and dusty industrial environments.

Key features

• 8.4” TFT SVGA (800 x 600), 450 nits
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4 (4 GB default)
• 2 x Intel® Ethernet controllers (2 x 2.5 Gbps)
• 2 x SATA III support, multiple COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0
• Front IP65 waterproof rating; fanless metal enclosure

Certifications

• CE
• FCC

Product highlights and usability
The Front IP65 series is designed for wet and dusty applications with a compact narrow-bezel front. Surface options include resistive touchscreen or protection glass (no touch). VGA and optional HDMI outputs ease integration with embedded systems. The front bezel uses an O-ring seal to ensure front protection and simplify panel installation in cabinets or enclosures; suitable for outdoor kiosks and industrial installations when properly mounted.

Display

• Size: 8.4 inches; Resolution: 800 x 600 (SVGA)
• Brightness: 450 nits; Contrast ratio: 600:1; Viewing angles: 80/80/60/80
• Active area: 170.4 x 127.8 mm; Touch options: resistive touch (optional) or protection glass (optional)

System specification

• Processor: Intel® Celeron® N6211
• Memory: 4 GB default; optional 8 GB / 16 GB; 1 x SO-DIMM (max 16 GB DDR4)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB; 1 x SATA III for 2.5" drive (optional)
• Security: TPM 2.0; OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Linux Ubuntu 22.04 (optional)
• WLAN/BT: optional via M.2 2230 E-Key

Mechanical

• Dimensions (W×H×D): 275 x 216 x 62 mm; Cut-out: 237 x 177 mm
• Weight: 1.9 kg; Mounting: panel mount default; VESA optional
• Enclosure: metal; Cooling: fanless

Environment

• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Operating humidity: 30% to 90% RH, non-condensing
• Front protection: IP65

IO Ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A) plus USB 2.0 ports
• Serial: 1 x RS232/422/485 (default RS232) and 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: VGA standard; HDMI 2.0 optional
• Audio: 2 x speaker; Indicators: power and storage LEDs
• Expansion: 1 x M.2 2242 B-Key (SATA SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 12V DC (2.5φ DC jack)

Control & Buttons

• 1 x power button
• 1 x reset button
• 1 x brightness adjustment knob

Accessories

• 100~240V AC to DC adapter
• Power cord
• VESA screws and mounting clips

Technical specifications

• Model: R08IE3S-IPT1WT
• Brand: Winmate
• Display size: 8.4"; Resolution: 800 x 600; Brightness: 450 nits
• Processor: Intel® Celeron® N6211; Memory support: 1 x SO-DIMM up to 16 GB DDR4
• Storage options: 128 GB SSD default; up to 2 TB; SATA/M.2 expansion
• Ethernet: 2 x Intel® controllers (2.5 Gbps)
• Front protection: IP65; Certifications: CE, FCC
