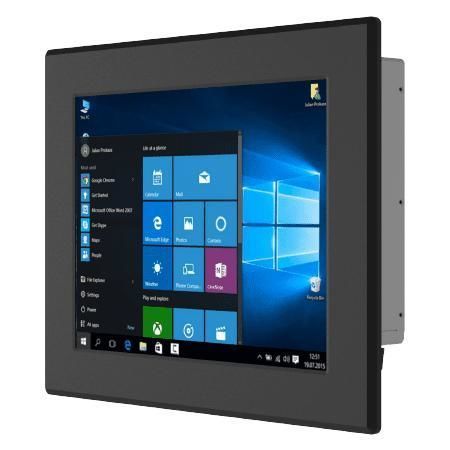

Resistive touch screen panel PC R15IT7T-IPC3

15"Intel® Core™ i5-1135G7Intel® Core™ i5-1145G7

Overview
Winmate R15IT7T-IPC3 is a 15-inch Front IP65 Panel PC powered by Intel® Core™ Tiger Lake UP3 i5-class processors (i5-1135G7 / i5-1145G7E). Designed for machine control, factory automation and operator HMI, it combines a sealed front bezel, multiple display interfaces (DP/HDMI/LVDS/eDP), extensive I/O and configurable storage/memory to meet industrial and kiosk requirements.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 or i5-1145G7E (vPro option)
• 15.0-inch display, 1024 x 768, 300 nits, 2000:1 contrast
• Multi-display support: DP / HDMI / LVDS / eDP
• Rich I/O: up to 4 x USB 3.2, 2 x serial, dual LAN (1 GbE + 2.5 GbE)
• 12V DC single-voltage input; front bezel rated IP65

Waterproof Front IP65 Design
Front bezel certified IP65 for dust and water protection. Narrow-bezel form factor for cabinet or kiosk integration. Rear rubber O-ring on the bezel ensures a reliable seal between the panel and customer fixture to prevent ingress of contaminants.

Touch and Display Options
Surface options include resistive touch (optional) or protection glass without touch. Display supports 1024 x 768 resolution, 300 nits brightness, 2000:1 contrast and wide viewing angles; active area 304.1 x 228.1 mm.

Interfaces & Integration
Equipped with multiple video outputs and standard I/O for embedded systems. Typical interfaces: DP1.4 (default), HDMI 2.0 (option), USB, serial, dual RJ45 LAN (1Gb + 2.5Gb), audio in/out, M.2 slots for NVMe and Wi‑Fi modules and PCIe expansion.

Industrial Use & Installation
Suitable for wet, dusty and outdoor kiosk environments when installed according to guidelines. Supports panel-mount installation by default; VESA mount available as an option. Fanless metal housing improves reliability in industrial settings.

Certifications
CE and FCC certified.

Technical specifications

• Model: R15IT7T-IPC3
• Brand: Winmate
• Display: 15.0 inches, 1024 x 768, 300 nits, 2000:1
• Touch / Glass: Resistive touch (optional); protection glass option
• CPU: Intel® Core™ i5-1135G7 (2.4GHz up to 4.2GHz); i5-1145G7E option (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" HDD/SSD (optional)
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5GbE RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: optional (M.2 2230 E-Key)
• Mechanical: 400 x 320 x 70 mm; cut-out 360 x 274 mm; weight 4.2 kg
• Mounting: Panel mount (default); VESA optional
• Enclosure: Metal housing; fanless design
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C; storage -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• I/O: 4 x USB 3.2 Gen2x1 (Type-A); 1 x RS232/422/485 (default RS232) + 1 x RS232; DP1.4 (default) + HDMI 2.0 (optional); Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal)
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Power input: 1 x 12V DC (Din4 pin); adapter 12V 120W (accessory)
