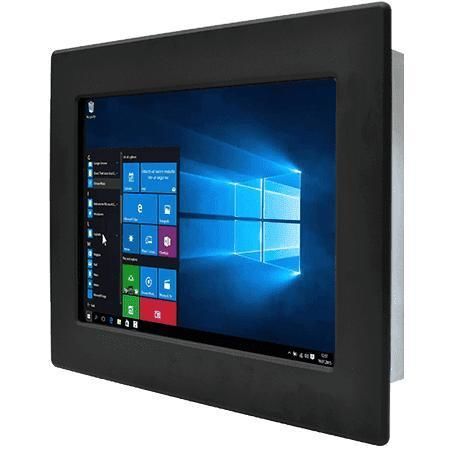

Resistive touch screen panel PC R12IP7T-IPM2WT

12.1"Intel® Pentium® N42001024 x 768

Overview The Winmate R12IP7T-IPM2WT is a 12.1-inch front IP65 industrial panel PC designed for HMI, machine control and factory automation in wet, dusty or wide-temperature environments. It integrates an Intel® Pentium® N4200 (Apollo Lake) processor, fanless metal housing and flexible storage and I/O options for embedded and kiosk applications.

Design and suitability Front IP65 sealing protects the bezel against water and dust when correctly mounted. The narrow-bezel, open-frame form factor supports panel and VESA installations. Optional resistive touchscreen or protection glass without touch adapts the surface to the use case.

Key features

• Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
• 12.1-inch display, 1024 x 768 resolution, 500 nits brightness
• Front IP65 rating, fanless metal housing, O-ring front sealing
• Flexible storage: 2.5" HDD bay, M.2 2242 B-key (SATA III), SATA RAID support
• Multiple I/Os: 2 x Serial, 4 x USB 3.0 (Type-A), 2 x Gigabit LAN, DP/HDMI/VGA
• Power input: 12 V DC (Din4 pin)

Functional highlights

• Dual display outputs (DP default; HDMI/VGA optional) for integration with controllers and video systems
• Touch and cover options: resistive touch or protection glass for high-humidity/chemical environments
• Easy front-to-panel installation with rear O-ring sealing and mounting clips
• Suitable for outdoor kiosks and pool/SPA kiosks when installed in appropriate enclosures

Certifications CE, FCC

Technical specifications

• Display: 12.1" 1024 x 768, 500 nits, contrast 1000:1, active area 245.76 x 184.32 mm
• Processor: Intel® Pentium® N4200 (1.1 GHz / up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM up to 16 GB (non-ECC)
• Storage: 128 GB SSD default; optional 256/512 GB, 1 TB; 2 x SATA III for 2.5" drives
• Networking: 2 x Intel® Gigabit Ethernet
• Security: TPM 2.0
• Expansion: M.2 2242 B-key (SATA III), M.2 2230 E-key (Wi‑Fi), PCIe 2.0 x1
• Dimensions / Cut-out: 324 x 274 x 79 mm / 302 x 234 mm
• Operating temperature: -20°C to 60°C; Humidity: 30%–90% RH non-condensing
• Weight: ~2.6 kg; Mounting: Open frame (std), Panel mount / VESA optional
• Power: 12 V DC (Din4), adapter 12V 50W
