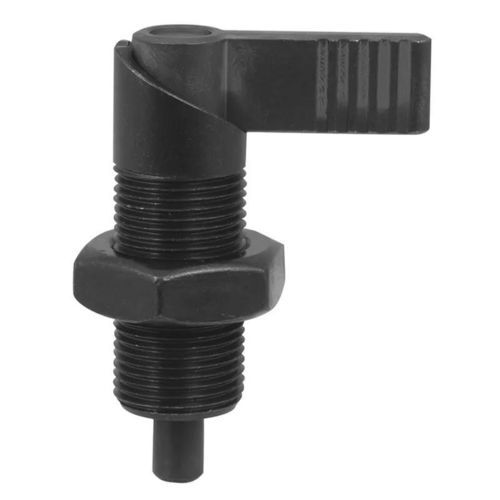

Stainless steel indexing plunger SR5410

zinc-plated steel

Product Details

• Our Cam Plungers are supplied in either stainless steel or burnished steel.
• The Cam Plungers are offered in a variety of plunger diameters.
• Series Code: SR5410, SR6568, SR6572

Available Variants (Selection)

• Indexing Plunger M20 x 1.5 Burnished Steel Black
• Indexing Plunger M20 x 1.5 Stainless Steel Grey
• Indexing Plunger M12 x 1.5 PA;Steel Black
• Indexing Plunger M16 PA;Steel Black

Technical Specifications (per variant)
Item Code | Price Range | Availability | Nose Projection | Handle Length | Overall Length | Finish | Nose Diameter
491239 | £21.0711 | Request the lead time | 0.472 in (12.0 mm) | 1.457 in (37.0 mm) | 2.717 in (69.0 mm) | |
491243 | £50.3733 | Request the lead time | 0.472 in (12.0 mm) | 2.008 in (51.0 mm) | 2.717 in (69.0 mm) | |
1220845 | £7.484 - £7.6257 | Request the lead time | 0.315 in (8.0 mm) | 0.984 in (25.0 mm) | 1.89 in (48.0 mm) | Zinc Plated | 0.157 in (4.0 mm)
1220849 | £8.8305 | Request the lead time | 0.394 in (10.0 mm) | 1.181 in (30.0 mm) | 2.224 in (56.5 mm) | Matt | 0.315 in (8.0 mm)
1220847 | £7.2855 - £7.4415 | Request the lead time | 0.315 in (8.0 mm) | 0.984 in (25.0 mm) | 1.89 in (48.0 mm) | Zinc Plated | 0.236 in (6.0 mm)
1220940 | £14.5122 - £14.8128 | Request the lead time | 0.551 in (14.0 mm) | 1.457 in (37.0 mm) | 2.677 in (68.0 mm) | Textured | 0.394 in (10.0 mm)
1220944 | £14.7412 | Request the lead time | 0.551 in (14.0 mm) | 1.457 in (37.0 mm) | 2.677 in (68.0 mm) | Textured | 0.551 in (14.0 mm)
1220948 | £15.3709 - £15.6858 | Request the lead time | 0.551 in (14.0 mm) | 1.457 in (37.0 mm) | 2.677 in (68.0 mm) | Textured | 0.394 in (10.0 mm)
1220952 | £15.4139 - £15.7287 | Request the lead time | 0.551 in (14.0 mm) | 1.457 in (37.0 mm) | 2.677 in (68.0 mm) | Textured | 0.551 in (14.0 mm)
1220936 | £10.7441 - £10.9709 | 35 In stock | 0.551 in (14.0 mm) | 1.457 in (37.0 mm) | 2.677 in (68.0 mm) | Zinc Plated | 0.394 in (10.0 mm)
1220842 | £8.5754 - £8.7455 | Request the lead time | 0.394 in (10.0 mm) | 1.181 in (30.0 mm) | 2.224 in (56.5 mm) | Zinc Plated | 0.394 in (10.0 mm)

Key Features

• Material: Stainless steel or burnished steel
• Multiple plunger diameters available
• Finishes: Matt, Textured, Zinc Plated
• Handle Lengths: 25.0 mm, 30.0 mm, 37.0 mm, 51.0 mm
• Nose Diameters: 4.0 mm, 5.0 mm, 6.0 mm, 8.0 mm, 10.0 mm, 12.0 mm, 14.0 mm
• Nose Projections: 8.0 mm, 10.0 mm, 12.0 mm, 14.0 mm
• Overall Lengths: 48.0 mm, 56.5 mm, 68.0 mm, 69.0 mm, 69.5 mm

Technical Characteristics / Specifications

• Series Code: SR5410, SR6568, SR6572
• Material: Stainless steel, Burnished steel
• Finish: Matt, Textured, Zinc Plated
• Handle Length: 25.0 mm, 30.0 mm, 37.0 mm, 51.0 mm
• Nose Diameter: 4.0 mm, 5.0 mm, 6.0 mm, 8.0 mm, 10.0 mm, 12.0 mm, 14.0 mm
• Nose Projection: 8.0 mm, 10.0 mm, 12.0 mm, 14.0 mm
• Overall Length: 48.0 mm, 56.5 mm, 68.0 mm, 69.0 mm, 69.5 mm
