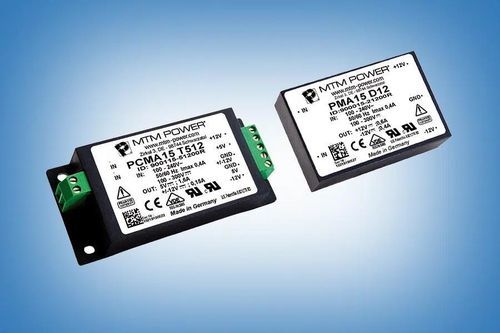

Chassis-mounted power supply PCMA15 S15

AC/DCsingle-outputregulated

Product overview

Features

• Wide AC and DC input range (90–264 V AC / 100–300 V DC)
• Prepared for protective class 1/2
• Overvoltage category II

Applications

• Decentralised power supply for industrial control and automation systems
• Available as PCB-mount module (PMA) and chassis-mount version (PCMA)
• Designed to supply electronic and electrical circuits in process measurement & control, laboratory equipment, and IT systems

Certifications / Compliance

• CE
• UL / cUL
• RoHS
• UKCA

Technical dataPower: 15 W
AC input: 90 - 264 V
DC input: 100 - 300 V
Output voltage U1: 15 V
Output current I1: 1.0 A
Efficiency: ≥75 %
Mounting type: Chassis mount
Dimensions: 111.0 x 52.4 x 24.5 mm
Weight: 200 g

Technical specifications

• Power: 15 W
• AC input range: 90–264 V
• DC input range: 100–300 V
• Output voltage: 15 V
• Output current: 1.0 A
• Efficiency: ≥75 %
• Mounting: Chassis mount (PCMA)
• Overvoltage category: II
• Dimensions: 111.0 x 52.4 x 24.5 mm
• Weight: 200 g
