Chassis-mounted power supply PCMA15 S48AC/DCsingle-outputRoHS
Add to favorites
Compare this product
Characteristics
- Mounting / format
- chassis-mounted
- Type
- AC/DC
- Output
- single-output
- Certifications
- RoHS, UL, CE
- Other characteristics
- wide input range
- Input voltage
Min.: 90 V
Max.: 300 V
- Output voltage
Min.: 48 V
Max.: 48 V
- Current
Min.: 0.3 A
Max.: 0.3 A
- Power
Min.: 14.4 W
(0.02 hp)Max.: 15 W
(0.02 hp)
Description
Overview
AC/DC module PCMA15: chassis-mounted power supply for decentralised industrial power distribution. Nominal power: 15 W. Output voltage: 48 V.
Features
Applications
Downloads (available)
Certifications / Compliance

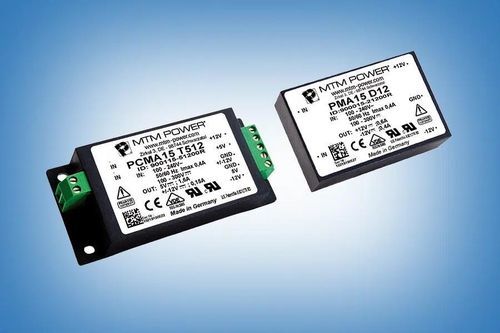

Illustration
Illustration similar.
Technical specifications
AC/DC module PCMA15: chassis-mounted power supply for decentralised industrial power distribution. Nominal power: 15 W. Output voltage: 48 V.
Features
- Wide input range
- Prepared for Class 1/2
- Overvoltage category 2
Applications
- Decentralised power supply for industrial applications
- Available for PCB-mounting (PMA) and for chassis mounting (PCMA)
- Supplying electronic and electrical circuits in process measurement and control technology, laboratory equipment, systems and IT
Downloads (available)
- Datasheet (PDF)
- 3D CAD drawing (STEP)
Certifications / Compliance
- CE
- UL / cUL
- RoHS
- UKCA
Illustration
Illustration similar.
Technical specifications
- Power: 14.4 W
- AC input: 90 - 264 V
- DC input: 100 - 300 V
- Output voltage U1: 48 V
- Output current I1: 0.3 A
- Efficiency: ≥78 %
- Mounting type: Chassis mount
- Dimensions: 111.0 x 52.4 x 24.5 mm
- Weight: 200 g
