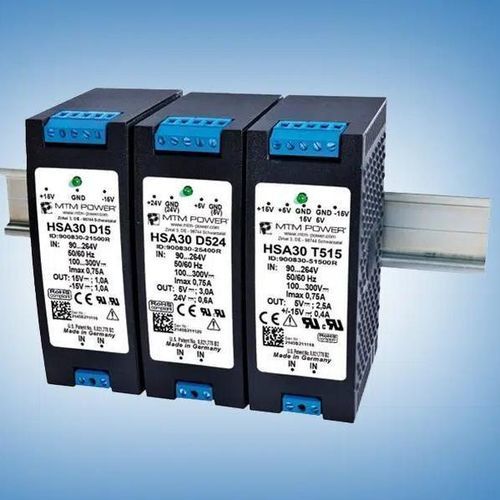

DIN rail power supply HSA30 D15

AC/DCdual-outputCE

Overview
AC/DC power supply 30 W. DIN-rail module with dual outputs ±15 V designed for reliable operation in industrial environments.

Features

• Wide input range: 90 - 264 VAC / 100 - 300 VDC
• Dual regulated outputs: +15 V / -15 V, 1.0 A each
• Compact DIN-rail housing: 43.0 x 115.0 x 75.0 mm
• Efficiency ≥74%

Applications

• Power supply for DIN rail mounting
• Supplying electronic and electrical circuits in process measurement and control, laboratory equipment, systems and IT

Technical Data HSA30 D15
Power: 30 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 15 V
Output Current I1: 1.0 A
Output Voltage U2: -15 V
Output Current I2: 1.0 A
Efficiency: ≥74 %
Mounting Type: DIN Rail Mount
Dimensions: 43.0 x 115.0 x 75.0 mm
Weight: 650 g

Certifications / Compliance
CE, RoHS, UKCA (certification marks presented on product page)

Specifications

• Power: 30 W
• Input (AC): 90 - 264 V
• Input (DC): 100 - 300 V
• Outputs: +15 V / -15 V
• Output currents: 1.0 A (each)
• Efficiency: ≥74 %
• Mounting: DIN rail
• Dimensions: 43.0 x 115.0 x 75.0 mm
• Weight: 650 g
